Complex Plane Algebra – Formulas and Geometry

🔑

Key Concept - Complex Number Representation

\[ z = a + bi = (a, b) \]

\[ \text{where } a = \text{real part (x-coordinate)}, b = \text{imaginary part (y-coordinate)} \]

\[ \text{Complex plane: horizontal axis = real, vertical axis = imaginary} \]

\[ \text{Every complex number corresponds to a unique point in the plane} \]

🎯 What does this mean?

The complex plane represents a revolutionary mathematical framework that provides geometric visualization for complex numbers, transforming abstract algebraic concepts into concrete spatial relationships. This graphical representation, also known as the Argand plane, enables intuitive understanding of complex number operations through geometric transformations including rotations, reflections, and translations. The complex plane serves as the foundation for advanced mathematical analysis, engineering applications, and scientific modeling where two-dimensional quantity representation is essential. Understanding complex numbers geometrically provides powerful tools for solving polynomial equations, analyzing oscillatory systems, and modeling wave phenomena in physics and engineering.

📐

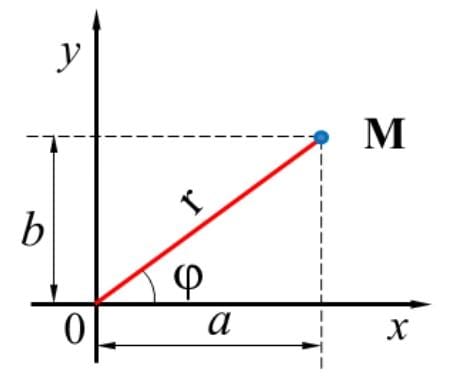

Polar Form Representation

Converting between rectangular and polar coordinates:

\[ z = r(\cos \theta + i\sin \theta) = re^{i\theta} \]

\[ \text{Modulus: } r = |z| = \sqrt{a^2 + b^2} \]

\[ \text{Argument: } \theta = \arg(z) = \arctan\left(\frac{b}{a}\right) \]

\[ \text{Conversion: } a = r\cos\theta, \quad b = r\sin\theta \]

🌊

Geometric Operations

Visual interpretation of complex arithmetic:

\[ \text{Addition: } z_1 + z_2 \text{ follows parallelogram law (vector addition)} \]

\[ \text{Subtraction: } z_1 - z_2 \text{ represents vector from } z_2 \text{ to } z_1 \]

\[ \text{Multiplication: } |z_1 z_2| = |z_1||z_2|, \quad \arg(z_1 z_2) = \arg(z_1) + \arg(z_2) \]

\[ \text{Division: } \left|\frac{z_1}{z_2}\right| = \frac{|z_1|}{|z_2|}, \quad \arg\left(\frac{z_1}{z_2}\right) = \arg(z_1) - \arg(z_2) \]

🔄

Complex Conjugate and Reflection

Geometric properties of complex conjugation:

\[ \bar{z} = a - bi \text{ (reflection across real axis)} \]

\[ |\bar{z}| = |z|, \quad \arg(\bar{z}) = -\arg(z) \]

\[ z \cdot \bar{z} = |z|^2 = a^2 + b^2 \]

\[ \text{Real part: } \text{Re}(z) = \frac{z + \bar{z}}{2}, \quad \text{Imaginary part: } \text{Im}(z) = \frac{z - \bar{z}}{2i} \]

📊

Roots of Unity and Regular Polygons

Geometric arrangement of nth roots:

\[ \text{nth roots of unity: } \omega_k = e^{2\pi i k/n} = \cos\frac{2\pi k}{n} + i\sin\frac{2\pi k}{n} \]

\[ \text{for } k = 0, 1, 2, \ldots, n-1 \]

\[ \text{Form vertices of regular n-gon on unit circle} \]

\[ \text{Applications: Fourier analysis, signal processing, crystallography} \]

📈

Transformations and Mappings

Geometric effects of complex functions:

\[ f(z) = z + c \text{ (translation by complex constant } c \text{)} \]

\[ f(z) = kz \text{ (scaling by real } k \text{ and rotation by } \arg(k) \text{)} \]

\[ f(z) = z^n \text{ (n-fold rotation and power scaling)} \]

\[ f(z) = \frac{1}{z} \text{ (inversion: maps inside unit circle to outside)} \]

🎯

Distance and Geometric Relationships

Spatial measurements in the complex plane:

\[ \text{Distance between } z_1 \text{ and } z_2: \quad d = |z_1 - z_2| \]

\[ \text{Circle centered at } z_0 \text{ with radius } r: \quad |z - z_0| = r \]

\[ \text{Line segment from } z_1 \text{ to } z_2: \quad z(t) = (1-t)z_1 + tz_2, \quad 0 \leq t \leq 1 \]

\[ \text{Perpendicular bisector: } |z - z_1| = |z - z_2| \]

⚠️

Common Mistakes and Key Points

Critical considerations for complex plane analysis:

\[ \text{Axis orientation: Imaginary axis is vertical, not horizontal} \]

\[ \text{Argument calculation: Consider quadrant for correct angle} \]

\[ \text{Polar conversion: } \arctan \text{ gives principal value, may need adjustment} \]

\[ \text{Multiplication geometry: Combine both magnitude scaling and rotation} \]

🎯 Mathematical Interpretation

The complex plane provides a fundamental bridge between algebra and geometry, enabling visualization of abstract complex number operations through concrete spatial transformations. This geometric framework reveals that complex number arithmetic corresponds to systematic geometric operations: addition follows vector parallelogram rules, multiplication combines scaling and rotation, and complex functions create geometric mappings that preserve important mathematical properties. Understanding the complex plane as a unified algebraic-geometric system provides essential tools for advanced mathematical analysis, engineering applications, and scientific modeling where two-dimensional quantities naturally arise. The visual intuition gained from complex plane analysis enhances problem-solving capabilities and provides geometric insight into otherwise abstract mathematical relationships.

\[ z = a + bi = (a, b) \]

Rectangular form - complex number as coordinate point

\[ z = re^{i\theta} \]

Polar form - magnitude and angle representation

\[ |z| = \sqrt{a^2 + b^2} \]

Modulus - distance from origin to point

\[ \arg(z) = \arctan(b/a) \]

Argument - angle from positive real axis

\[ \text{Vector Addition} \]

Complex addition - parallelogram law visualization

\[ \text{Rotation-Scaling} \]

Complex multiplication - geometric transformation combination

\[ \text{Conjugate Reflection} \]

Complex conjugate - mirror image across real axis

\[ \text{Roots of Unity} \]

Regular polygons - symmetrical arrangements on unit circle

\[ \text{Function Mappings} \]

Complex functions - geometric transformations of plane regions

\[ \text{Distance Formula} \]

Geometric measurements - spatial relationships between points

\[ \text{Circle Equations} \]

Geometric loci - sets of points satisfying distance conditions

\[ \text{Engineering Applications} \]

Signal processing - AC circuits, wave analysis, control systems

🎯 Essential Insight: The complex plane is like a mathematical "GPS system" that gives every complex number a precise location and makes abstract algebra visible through geometry! 🗺️

🚀 Real-World Applications

⚡ Electrical Engineering & AC Circuits

Phasor Analysis & Power Calculations

Engineers use the complex plane for analyzing AC circuits, representing voltage and current phasors, calculating complex power, and designing electrical systems with phase relationships

🎵 Signal Processing & Communications

Fourier Analysis & Filter Design

Engineers apply complex plane methods for frequency domain analysis, designing digital filters, processing audio signals, and implementing communication system modulation schemes

🎮 Computer Graphics & Animation

2D Transformations & Geometric Modeling

Graphics programmers use complex numbers for efficient 2D rotations, scaling transformations, animation interpolation, and modeling geometric shapes in game development

🌊 Fluid Dynamics & Aerodynamics

Flow Visualization & Potential Theory

Aerospace engineers apply complex plane methods for analyzing fluid flow patterns, designing airfoils, studying aerodynamic forces, and modeling potential flow around objects

The Magic: Electrical: AC circuit analysis and phasor diagrams, Signal Processing: Fourier analysis and filter design, Graphics: 2D transformations and animation, Aerodynamics: Flow visualization and potential theory

🎯

Master the "Visual Navigator" Method!

Before working with complex numbers algebraically, develop visual geometric intuition:

Key Insight: The complex plane is like a mathematical GPS system that gives every complex number a precise location and makes abstract algebra visible through geometry! Think of yourself as a visual navigator who can see complex operations as geometric transformations. Master the geometric perspective and you'll understand complex analysis intuitively!

💡 Why this matters:

🔋 Real-World Power:

Electrical: AC circuit analysis and phasor diagrams
Signal Processing: Fourier analysis and digital filter design
Graphics: 2D transformations and computer animation
Aerodynamics: Flow visualization and airfoil design

🧠 Mathematical Insight:

Geometric visualization: Convert abstract algebra to concrete spatial relationships
Operation understanding: See addition, multiplication as geometric transformations
Function mapping: Visualize how complex functions transform plane regions
Pattern recognition: Identify symmetries and geometric properties

🚀 Study Strategy:

1 Master Coordinate Systems 📚

Rectangular form: z = a + bi as point (a, b) in plane
Polar form: z = re^(iθ) with magnitude r and angle θ
Conversion methods: Between rectangular and polar representations
Geometric meaning: Real axis horizontal, imaginary axis vertical

2 Learn Geometric Operations 🔍

Addition: Vector parallelogram law visualization
Multiplication: Combined scaling and rotation
Conjugation: Reflection across real axis
Powers and roots: Regular polygon arrangements

3 Apply Transformation Analysis 📊

Function mappings: How complex functions transform regions
Linear transformations: Translation, rotation, scaling effects
Geometric loci: Circles, lines, curves in complex plane
Distance and angle: Spatial relationships between complex numbers

4 Master Engineering Applications 🔗

AC circuit analysis: Phasor diagrams and impedance calculations
Signal processing: Frequency domain analysis and filtering
Computer graphics: Efficient 2D transformations and animation
Fluid dynamics: Flow patterns and aerodynamic analysis

When you master the "visual navigator" approach and understand the complex plane as a unified algebraic-geometric system, you'll have powerful visualization tools, intuitive operation understanding, and the ability to apply complex analysis to real-world engineering problems in electrical systems, signal processing, computer graphics, and fluid dynamics!

Memory Trick: "Visual Navigator" - COORDINATES: (a,b) point in plane, POLAR: r·e^(iθ) magnitude-angle, OPERATIONS: Geometric transformations

🔑 Key Properties of the Complex Plane

🧮

Algebraic-Geometric Unity

Provides visual representation for abstract complex number operations

Bridges gap between algebraic manipulation and geometric intuition

🔄

Transformation Visualization

Complex operations appear as geometric transformations of the plane

Enables intuitive understanding of function mappings and their properties

📐

Coordinate System Foundation

Systematic method for representing two-dimensional quantities

Essential framework for engineering and scientific applications

🌊

Universal Applications

Fundamental tool for electrical engineering, signal processing, and physics

Enables sophisticated analysis of oscillatory and wave phenomena

Universal Insight: The complex plane is a mathematical GPS system making abstract algebra visible through geometry!

General Approach: Visualize complex numbers as points, operations as transformations

Coordinate Forms: Rectangular z = a + bi and polar z = re^(iθ) representations

Key Tools: Vector addition, rotation-scaling, conjugate reflection, and function mapping

Applications: Electrical engineering, signal processing, computer graphics, and fluid dynamics
