Normal Distribution – Gaussian Curve in Statistics

Ddefinition

The Normal Distribution, also known as the Gaussian Distribution, is a symmetric, bell-shaped probability distribution that describes how values are distributed around the mean. It is widely used in statistics, natural sciences, and social sciences due to its applicability in real-world data.

Normal Distribution is the most fundamental continuous probability distribution in statistics, characterized by its symmetric bell-shaped curve. It serves as the foundation for statistical inference, hypothesis testing, and modeling natural phenomena, with its universal applicability stemming from the Central Limit Theorem.

🔔

Probability Density Function

The mathematical definition of the normal distribution:

\[ f(x) = \frac{1}{\sigma\sqrt{2\pi}} e^{-\frac{1}{2}\left(\frac{x-\mu}{\sigma}\right)^2} \]

\[ \text{Where: } -\infty < x < \infty, \quad \mu \in \mathbb{R}, \quad \sigma > 0 \]

\[ X \sim N(\mu, \sigma^2) \text{ (Normal with mean } \mu \text{ and variance } \sigma^2\text{)} \]

\[ \text{Standard Normal: } Z \sim N(0, 1) \text{ when } \mu = 0, \sigma = 1 \]

📊

Key Parameters and Moments

Central parameters defining the normal distribution:

\[ \text{Mean: } E[X] = \mu \]

\[ \text{Variance: } \text{Var}(X) = \sigma^2 \]

\[ \text{Standard Deviation: } \text{SD}(X) = \sigma \]

\[ \text{Skewness: } \gamma_1 = 0 \text{ (perfectly symmetric)} \]

\[ \text{Kurtosis: } \gamma_2 = 3 \text{ (mesokurtic)} \]

📈

Cumulative Distribution Function (CDF)

The probability that a random variable X takes a value less than or equal to x:

\[ F(x) = P(X \leq x) \]

\[ \text{For Discrete: } F(x) = \sum_{x_i \leq x} P(X = x_i) \]

\[ \text{For Continuous: } F(x) = \int_{-\infty}^{x} f(t) \, dt \text{ where } f(t) \text{ is the PDF} \]

\[ \text{Range: } 0 \leq F(x) \leq 1 \text{ for all } x \in \mathbb{R} \]

⚡

Key Properties

Essential properties and mathematical characteristics of CDFs:

\[ F \text{ is non-decreasing: if } x_1 < x_2, \text{ then } F(x_1) \leq F(x_2) \]

\[ F \text{ is right-continuous: } \lim_{h \to 0^+} F(x+h) = F(x) \]

\[ \lim_{x \to -\infty} F(x) = 0, \quad \lim_{x \to \infty} F(x) = 1 \]

\[ P(a < X \leq b) = F(b) - F(a), \quad P(X > x) = 1 - F(x) \]

📊

Common Distribution Examples

CDF formulas for frequently used probability distributions:

\[ \text{Standard Normal: } \Phi(z) = \int_{-\infty}^{z} \frac{1}{\sqrt{2\pi}} e^{-\frac{t^2}{2}} dt \]

\[ \text{Exponential: } F(x) = 1 - e^{-\lambda x} \text{ for } x \geq 0, \lambda > 0 \]

\[ \text{Uniform on [a,b]: } F(x) = \frac{x-a}{b-a} \text{ for } a \leq x \leq b \]

\[ \text{Bernoulli: } F(x) = \begin{cases} 0 & \text{if } x < 0 \\ 1-p & \text{if } 0 \leq x < 1 \\ 1 & \text{if } x \geq 1 \end{cases} \]

🎯

Standardization and Z-Scores

Converting any normal distribution to standard normal:

\[ Z = \frac{X - \mu}{\sigma} \]

\[ \text{If } X \sim N(\mu, \sigma^2), \text{ then } Z \sim N(0, 1) \]

\[ P(X \leq x) = P\left(Z \leq \frac{x - \mu}{\sigma}\right) = \Phi\left(\frac{x - \mu}{\sigma}\right) \]

\[ \text{Where } \Phi(z) \text{ is the standard normal CDF} \]

📐

Empirical Rule (68-95-99.7 Rule)

Probability content within standard deviations:

\[ P(\mu - \sigma \leq X \leq \mu + \sigma) = 0.6827 \approx 68\% \]

\[ P(\mu - 2\sigma \leq X \leq \mu + 2\sigma) = 0.9545 \approx 95\% \]

\[ P(\mu - 3\sigma \leq X \leq \mu + 3\sigma) = 0.9973 \approx 99.7\% \]

\[ \text{Standard Normal: } P(-1 \leq Z \leq 1) = 0.6827 \]

🔢

Properties and Characteristics

Fundamental properties of normal distributions:

\[ \text{Symmetric about mean: } f(\mu + x) = f(\mu - x) \]

\[ \text{Bell-shaped curve with single peak at } x = \mu \]

\[ \text{Asymptotic: } \lim_{x \to \pm\infty} f(x) = 0 \]

\[ \text{Inflection points at } x = \mu \pm \sigma \]

\[ \text{Total area under curve = 1} \]

🔄

Linear Combinations and Transformations

Normal distribution behavior under transformations:

\[ \text{If } X \sim N(\mu, \sigma^2), \text{ then } aX + b \sim N(a\mu + b, a^2\sigma^2) \]

\[ \text{If } X_1 \sim N(\mu_1, \sigma_1^2), X_2 \sim N(\mu_2, \sigma_2^2) \text{ independent} \]

\[ \text{Then } X_1 + X_2 \sim N(\mu_1 + \mu_2, \sigma_1^2 + \sigma_2^2) \]

\[ \text{Sample Mean: } \bar{X} \sim N\left(\mu, \frac{\sigma^2}{n}\right) \]

🎲

Central Limit Theorem

Foundation for normal approximations:

\[ \text{If } X_1, X_2, \ldots, X_n \text{ are i.i.d with } E[X_i] = \mu, \text{Var}(X_i) = \sigma^2 \]

\[ \text{Then } \frac{\bar{X} - \mu}{\sigma/\sqrt{n}} \xrightarrow{d} N(0, 1) \text{ as } n \to \infty \]

\[ \text{Practical Rule: } n \geq 30 \text{ for good normal approximation} \]

\[ \text{Sum: } \sum_{i=1}^n X_i \approx N(n\mu, n\sigma^2) \text{ for large } n \]

📈

Probability Calculations

Common probability computations:

\[ P(a \leq X \leq b) = \Phi\left(\frac{b-\mu}{\sigma}\right) - \Phi\left(\frac{a-\mu}{\sigma}\right) \]

\[ P(X > x) = 1 - \Phi\left(\frac{x-\mu}{\sigma}\right) \]

\[ P(|X - \mu| > k\sigma) = 2\left[1 - \Phi(k)\right] \]

\[ \text{Percentiles: } x_p = \mu + \sigma \cdot z_p \text{ where } \Phi(z_p) = p \]

🎯 What does this mean?

The normal distribution is nature's "default pattern" for random variation - it emerges whenever many small, independent factors combine to influence an outcome. Think of it as the statistical equivalent of a perfect balance: symmetric, predictable, and universal. It's the bell curve you see everywhere from test scores to heights to measurement errors, representing how most values cluster around the average with fewer extreme values at the tails.

\[ \mu \]

Population Mean - Center of the distribution

\[ \sigma \]

Standard Deviation - Spread of the distribution

\[ \sigma^2 \]

Variance - Squared standard deviation

\[ f(x) \]

Probability Density Function - Height of curve at x

\[ \Phi(z) \]

Standard Normal CDF - Cumulative probability

\[ Z \]

Z-Score - Standardized value (standard deviations from mean)

\[ N(\mu, \sigma^2) \]

Normal Distribution Notation - Mean μ, variance σ²

\[ e \]

Euler's Number - Mathematical constant ≈ 2.718

\[ \pi \]

Pi - Mathematical constant ≈ 3.14159

\[ \bar{X} \]

Sample Mean - Average of sample observations

\[ n \]

Sample Size - Number of observations

\[ z_p \]

Critical Value - Z-score corresponding to probability p

🎯 Essential Insight: The normal distribution is the "universal language" of statistics - it emerges naturally from the combination of many random factors and provides the foundation for most statistical inference! 🎯

🚀 Real-World Applications

🏭 Quality Control & Manufacturing

Process Monitoring & Specification Limits

Product dimensions, manufacturing tolerances, defect rates, and quality metrics follow normal patterns enabling statistical process control

📊 Finance & Risk Management

Portfolio Analysis & Market Modeling

Stock returns, portfolio risk, option pricing models, and Value-at-Risk calculations rely heavily on normal distribution assumptions

🧬 Natural Sciences & Biology

Measurement & Population Studies

Human heights, weights, blood pressure, IQ scores, and biological measurements naturally follow normal distributions

🔬 Research & Hypothesis Testing

Statistical Inference & Confidence Intervals

t-tests, ANOVA, regression analysis, and confidence intervals depend on normal distribution theory for valid conclusions

The Magic: Manufacturing: Control charts → Quality assurance, Finance: Risk models → Investment decisions, Science: Natural patterns → Predictable outcomes, Research: Statistical tests → Valid conclusions

🎯

Master the "Bell Curve Universe" Method!

Before working with normal distributions, visualize the bell curve and understand its universal patterns:

Key Insight: The normal distribution is the statistical "goldilocks" - not too peaked, not too flat, perfectly symmetric, and emerges naturally when many random factors combine. It's the universe's preferred pattern!

💡 Why this matters:

🔋 Real-World Power:

Prediction: Enables probability calculations for future outcomes
Quality Control: Identifies when processes are out of control
Risk Assessment: Quantifies likelihood of extreme events
Statistical Inference: Foundation for hypothesis testing and confidence intervals

🧠 Mathematical Insight:

Central Limit Theorem guarantees normal approximations for large samples
Linear combinations of normal variables remain normal
Standardization enables universal probability tables

🚀 Practice Strategy:

1 Visualize the Bell Curve 🔔

Draw symmetric bell centered at μ
Mark inflection points at μ ± σ
Key insight: 68-95-99.7 rule for quick estimates

2 Standardize Everything 📏

Convert to Z-scores: Z = (X - μ)/σ
Use standard normal table or calculator
Remember: standardization preserves probabilities

3 Apply Empirical Rules 📊

68% within 1 standard deviation
95% within 2 standard deviations
99.7% within 3 standard deviations

4 Leverage Normal Properties 🔄

Sums and averages of normal variables are normal
Use Central Limit Theorem for large samples
Apply to hypothesis testing and confidence intervals

When you see the normal distribution as nature's "default pattern" that emerges from the combination of many factors, statistics becomes a powerful tool for understanding and predicting the natural world!

Memory Trick: "Normal = Nature's Optimal Random Model" - BELL: Symmetric bell shape, CENTER: Mean at peak, SPREAD: Standard deviation controls width

🔑 Key Properties of Normal Distribution

⚖️

Perfect Symmetry

Mean = Median = Mode at center

Bell-shaped curve symmetric about μ

📏

Empirical Rule

68-95-99.7% within 1-2-3 standard deviations

Predictable probability concentrations

🔄

Closure Under Linear Operations

Linear combinations remain normal

Sums and averages preserve normality

🌍

Universal Emergence

Central Limit Theorem guarantees appearance

Emerges from many random factors

Universal Insight: The normal distribution is the mathematical embodiment of "natural randomness" - it represents how the universe organizes variation around a central tendency! 🎯

Bell Shape: Symmetric curve with single peak at the mean

68-95-99.7: Memory device for standard deviation coverage

Z-Transformation: Standardization enables universal probability calculations

Central Limit: Sample means approach normality regardless of population distribution

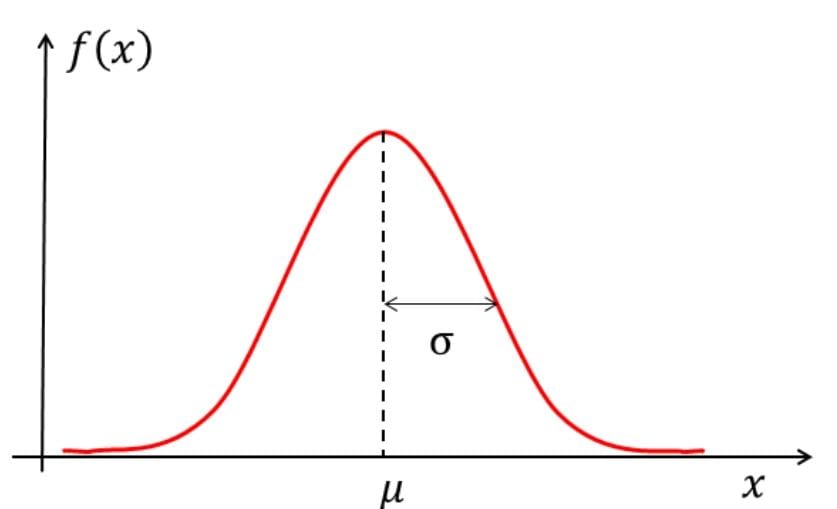

Normal Distribution (Gaussian) – Bell Curve
