Reflection of Graphs – Function Mirror Transformation

🔑

Key Formula - Basic Reflections

\[ y = -f(x) \quad \text{(Reflection across x-axis)} \]

\[ y = f(-x) \quad \text{(Reflection across y-axis)} \]

\[ y = -f(-x) \quad \text{(Reflection across origin)} \]

🎯 What does this mean?

Reflection is a geometric transformation that creates a mirror image of a function across a line or point. It flips the graph while preserving distances and angles, creating perfect symmetry about the reflection axis. Reflections model physical phenomena like light bouncing off mirrors, wave interference patterns, and symmetrical designs in architecture and nature.

📐

Point Transformation Rules

How individual points change under reflection:

\[ (x, y) \rightarrow (x, -y) \quad \text{(Across x-axis)} \]

\[ (x, y) \rightarrow (-x, y) \quad \text{(Across y-axis)} \]

\[ (x, y) \rightarrow (-x, -y) \quad \text{(Across origin)} \]

\[ (x, y) \rightarrow (y, x) \quad \text{(Across line } y = x\text{)} \]

🔗

Function Notation and Effects

Understanding reflection through function transformations:

\[ -f(x): \text{ Multiply output by -1 (flip vertically)} \]

\[ f(-x): \text{ Multiply input by -1 (flip horizontally)} \]

\[ \text{Shape preserved, orientation changes} \]

\[ \text{Distance from reflection axis remains constant} \]

🔄

Multiple Reflections and Combinations

Combining reflections and their cumulative effects:

\[ -f(-x) = -1 \cdot f(-x) \quad \text{(Double reflection)} \]

\[ \text{Two reflections across parallel lines = translation} \]

\[ \text{Two reflections across intersecting lines = rotation} \]

\[ \text{Reflection is its own inverse: Apply twice returns original} \]

📊

Specific Function Examples

How common functions behave under reflection:

\[ f(x) = x^2 \rightarrow -f(x) = -x^2 \text{ (parabola flips down)} \]

\[ f(x) = x^2 \rightarrow f(-x) = (-x)^2 = x^2 \text{ (unchanged - even function)} \]

\[ f(x) = x^3 \rightarrow f(-x) = (-x)^3 = -x^3 \text{ (odd function behavior)} \]

\[ f(x) = \sqrt{x} \rightarrow -f(x) = -\sqrt{x} \text{ (flips below x-axis)} \]

📈

Symmetry Properties and Recognition

Connection between reflections and function symmetries:

\[ \text{Even function: } f(-x) = f(x) \text{ (y-axis symmetry)} \]

\[ \text{Odd function: } f(-x) = -f(x) \text{ (origin symmetry)} \]

\[ \text{Functions can be reflected to reveal hidden symmetries} \]

\[ \text{Reflection preserves function properties like continuity} \]

🎯

Advanced Reflection Techniques

Complex reflection scenarios and applications:

\[ \text{Reflection across line } y = mx + b \text{ (general line)} \]

\[ \text{Reflection combined with other transformations} \]

\[ \text{Piecewise functions and selective reflection} \]

\[ \text{Matrix representation: reflection matrices} \]

🎯 Mathematical Interpretation

Reflections represent perfect symmetrical transformations that preserve distances and angles while changing orientation. They model physical processes like light reflection, sound echo patterns, and crystallographic symmetries. In mathematics, reflections help identify function properties, create symmetric designs, and solve geometric problems. They demonstrate how mathematical transformations can preserve essential characteristics while changing appearance, making them fundamental to understanding symmetry in both pure and applied mathematics.

\[ f(x) \]

Original function - the base function before reflection transformation is applied

\[ -f(x) \]

Vertical reflection - flips graph across x-axis by negating all y-values

\[ f(-x) \]

Horizontal reflection - flips graph across y-axis by negating all x-values

\[ (x, y) \rightarrow (x', y') \]

Point mapping - transformation rule showing how coordinates change under reflection

\[ \text{Reflection Axis} \]

Mirror line - the line across which the reflection occurs (x-axis, y-axis, origin, etc.)

\[ \text{Distance Preservation} \]

Geometric property - all points maintain same distance from reflection axis

\[ \text{Even Function} \]

Symmetry type - f(-x) = f(x), unchanged by reflection across y-axis

\[ \text{Odd Function} \]

Symmetry type - f(-x) = -f(x), displays origin symmetry under reflection

\[ \text{Origin Reflection} \]

Point symmetry - combination of both horizontal and vertical reflections

\[ \text{Inverse Property} \]

Self-reversing transformation - applying reflection twice returns original function

\[ \text{Shape Preservation} \]

Geometric invariant - reflection maintains function shape while changing orientation

\[ \text{Matrix Representation} \]

Linear algebra form - reflection expressed as matrix multiplication transformation

🎯 Essential Insight: Reflections are like mathematical mirrors - they create perfect symmetrical copies while preserving all distances and angles! 🪞

🚀 Real-World Applications

🏗️ Architecture & Design

Symmetrical Structures & Pattern Creation

Architects use reflection principles for symmetrical building design, creating balanced facades, planning geometric patterns, and ensuring structural harmony in construction

💡 Physics & Optics

Light Reflection & Wave Behavior

Physicists apply reflection concepts for mirror design, laser systems, wave interference analysis, and understanding electromagnetic wave propagation patterns

🎨 Computer Graphics & Animation

Digital Imaging & Visual Effects

Graphics designers use reflection transformations for creating symmetrical objects, water reflection effects, mirror simulations, and geometric pattern generation

🔬 Crystallography & Chemistry

Molecular Symmetry & Crystal Structure

Scientists apply reflection symmetry for analyzing crystal structures, understanding molecular geometry, predicting chemical properties, and designing new materials

The Magic: Architecture: Symmetrical design and balanced structural planning, Physics: Light reflection and wave behavior analysis, Graphics: Digital symmetry and visual effect creation, Science: Molecular symmetry and crystal structure analysis

🎯

Master the "Mirror Rule" Method!

Before working with complex function reflections, develop this visualization technique:

Key Insight: Reflections are like mathematical mirrors that create perfect symmetrical copies. The key is remembering what gets flipped: -f(x) flips the output (y-values) across the x-axis, while f(-x) flips the input (x-values) across the y-axis. Think "negative output flips vertically, negative input flips horizontally!"

💡 Why this matters:

🔋 Real-World Power:

Architecture: Symmetrical building design and balanced structural planning
Physics: Light reflection analysis and wave interference modeling
Graphics: Digital mirror effects and symmetrical object creation
Science: Molecular symmetry analysis and crystal structure determination

🧠 Mathematical Insight:

Vertical reflection: -f(x) flips graph across x-axis (up becomes down)
Horizontal reflection: f(-x) flips graph across y-axis (left becomes right)
Distance preservation: All points stay same distance from reflection axis
Inverse property: Two reflections across same axis return original

🚀 Study Strategy:

1 Identify Reflection Type 📐

-f(x): Vertical reflection across x-axis (flip y-coordinates)
f(-x): Horizontal reflection across y-axis (flip x-coordinates)
-f(-x): Origin reflection (flip both coordinates)
Key insight: "Which coordinate is being negated?"

2 Apply Point Transformation Rules 📋

Across x-axis: (x, y) → (x, -y)
Across y-axis: (x, y) → (-x, y)
Across origin: (x, y) → (-x, -y)
Across y = x: (x, y) → (y, x)

3 Recognize Symmetry Patterns 🔗

Even functions: f(-x) = f(x) (y-axis symmetric)
Odd functions: f(-x) = -f(x) (origin symmetric)
Use reflections to test and identify function symmetries
Combine reflections with other transformations systematically

4 Apply to Real Situations 🎯

Architecture: Design symmetrical structures and balanced layouts
Physics: Analyze light reflection and wave interference patterns
Graphics: Create mirror effects and symmetrical digital objects
Science: Study molecular symmetry and crystal structure properties

When you master the "mirror rule" and understand reflections as symmetry creators, you'll have powerful tools for analyzing function behavior, designing symmetrical structures, and understanding wave patterns across mathematics, physics, and engineering applications!

Memory Trick: "Negative Output Flips Vertically, Negative Input Flips Horizontally" - -f(x): Vertical flip, f(-x): Horizontal flip, -f(-x): Both flips

🔑 Key Properties of Reflections

📐

Perfect Symmetry

Creates exact mirror images with preserved distances and angles

Every point maintains equal distance from reflection axis on opposite side

📈

Shape Preservation

Function shape remains identical while orientation changes

All geometric properties like continuity and differentiability preserved

🔗

Inverse Property

Applying same reflection twice returns original function

Reflection is its own inverse transformation operation

🎯

Symmetry Revelation

Reflections help identify even and odd function properties

Useful for testing and creating symmetrical mathematical relationships

Universal Insight: Reflections are mathematical symmetry creators that preserve all essential properties while changing orientation through perfect mirroring!

Basic Rules: -f(x) flips vertically, f(-x) flips horizontally

Point Mapping: (x,y) → (x,-y) across x-axis, (x,y) → (-x,y) across y-axis

Symmetry Types: Even functions (y-axis), odd functions (origin)

Applications: Architectural design, optical systems, computer graphics, and molecular symmetry analysis

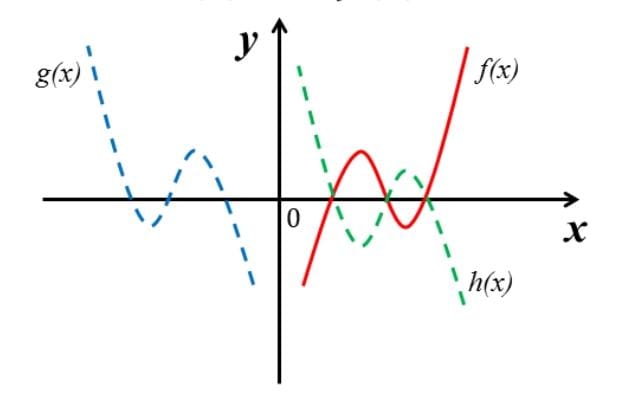

Reflection – Graph of Functions About Axes
