Spherical Cap Geometry – Volume and Area

🔑

Key Definition - Spherical Cap and Its Components

\[ \text{Spherical cap: portion of sphere cut by plane} \]

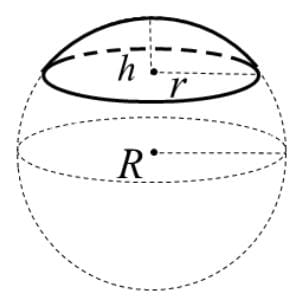

\[ \text{Components: radius } (R), \text{ height } (h), \text{ base radius } (r) \]

\[ \text{Height: perpendicular distance from base to sphere surface} \]

\[ \text{Base circle: circular cross-section where plane cuts sphere} \]

🎯 What does this mean?

Spherical caps represent the fundamental three-dimensional segments formed when a plane cuts through a sphere, creating curved dome-like structures with circular bases, providing essential frameworks for understanding spherical geometry, volume calculations, and curved surface analysis in engineering and scientific applications. These elegant curved solids extend far beyond simple geometric constructions to encompass architectural design, fluid mechanics, optical systems, and sophisticated mathematical modeling that enables advanced spatial analysis, dome construction, and spherical optimization. Spherical caps provide essential tools for analyzing curved surfaces, calculating volumes using spherical integration, understanding dome geometry, and solving practical problems while maintaining mathematical precision and enabling complex three-dimensional reasoning. Understanding spherical caps is crucial for spherical geometry, calculus, engineering design, and applied mathematics where spherical relationships require systematic analysis, integration methods, and practical applications, making them indispensable for solving dome problems, modeling curved surfaces, analyzing spherical containers, and designing cap-shaped structures across diverse mathematical, architectural, and engineering contexts.

📐

Fundamental Measurements - Volume and Surface Area

Essential measurements and properties of spherical caps:

\[ \text{Volume: } V = \frac{\pi h^2}{3}(3R - h) \]

\[ \text{Curved surface area: } A_{curved} = 2\pi Rh \]

\[ \text{Base area: } A_{base} = \pi r^2 = \pi h(2R - h) \]

\[ \text{Total surface area: } A_{total} = 2\pi Rh + \pi h(2R - h) \]

🌊

Geometric Relationships - Radius and Height

Key relationships between cap dimensions:

\[ \text{Base radius: } r = \sqrt{h(2R - h)} \]

\[ \text{Height from base radius: } h = R - \sqrt{R^2 - r^2} \]

\[ \text{Sphere radius from cap: } R = \frac{r^2 + h^2}{2h} \]

\[ \text{Pythagorean relationship: } r^2 + (R - h)^2 = R^2 \]

🔄

Alternative Volume Formulas - Different Approaches

Various methods for calculating spherical cap volume:

\[ V = \frac{\pi h}{6}(3r^2 + h^2) \]

\[ V = \frac{\pi h^2}{3}(3R - h) = \pi h^2R - \frac{\pi h^3}{3} \]

\[ V = \frac{2\pi R^3}{3}\left(1 - \cos\theta\right)^2\left(2 + \cos\theta\right) \]

\[ \text{where } \theta = \arccos\left(\frac{R-h}{R}\right) \]

📊

Special Cases - Hemisphere and Small Caps

Common spherical cap configurations:

\[ \text{Hemisphere: } h = R \Rightarrow V = \frac{2\pi R^3}{3}, A = 2\pi R^2 \]

\[ \text{Small cap approximation: } V \approx \frac{\pi h^3}{3} \text{ when } h \ll R \]

\[ \text{Quarter sphere: } h = R(1 - \frac{\sqrt{2}}{2}) \]

\[ \text{Shallow cap: } r \approx \sqrt{2Rh} \text{ when } h \ll R \]

📈

Centroid and Moment - Center of Mass

Center of mass and moment calculations for spherical caps:

\[ \text{Centroid height from base: } \bar{z} = \frac{3(2R - h)^2}{4(3R - h)} \]

\[ \text{Distance from sphere center: } d = R - \frac{3(2R - h)^2}{4(3R - h)} \]

\[ \text{First moment: } Q = V \times \bar{z} \]

\[ \text{Centroid on axis of symmetry through sphere center} \]

🎯

Integration Derivation - Calculus Approach

Deriving formulas using integration methods:

\[ V = \int_{R-h}^{R} \pi(R^2 - z^2) \, dz \]

\[ A_{curved} = \int_{0}^{h} 2\pi r \sqrt{1 + \left(\frac{dr}{dz}\right)^2} \, dz \]

\[ \text{Coordinate: } z \text{ from sphere center, } r(z) = \sqrt{R^2 - z^2} \]

\[ \text{Surface element: } dS = 2\pi r \sqrt{1 + (r')^2} \, dz = 2\pi R \, dz \]

⚠️

Common Mistakes and Key Points

Critical considerations for spherical cap calculations:

\[ \text{Height } h \leq 2R \text{ (cannot exceed sphere diameter)} \]

\[ \text{Curved surface area } \neq \text{ base area (different formulas)} \]

\[ \text{Volume depends on } h^2 \text{ and } h^3 \text{ terms} \]

\[ \text{Base radius } r \text{ is not independent of } R \text{ and } h \]

🎯 Geometric Interpretation

Spherical caps represent the fundamental three-dimensional curved segments formed by planar intersections of spheres, providing essential frameworks for understanding spherical geometry, dome structures, and curved surface analysis while maintaining mathematical precision and enabling sophisticated spatial reasoning. These elegant curved solids extend beyond basic measurements to become essential tools for architectural design, engineering applications, fluid mechanics, and mathematical modeling where spherical relationships require precise analytical treatment. The unique properties of spherical caps enable systematic methods for volume calculations using integration, surface area computations, centroid analysis, and geometric relationships while maintaining spherical rigor and providing powerful problem-solving techniques. Understanding spherical caps as both geometric objects and analytical frameworks reveals their essential role in mathematics, architecture, and engineering where dome structures, curved containers, and spherical systems require precise mathematical treatment, integration methods, and practical applications across diverse mathematical and technological contexts.

\[ V = \frac{\pi h^2}{3}(3R - h) \]

Volume - space enclosed by spherical cap

\[ A_{curved} = 2\pi Rh \]

Curved surface area - spherical surface portion

\[ r = \sqrt{h(2R - h)} \]

Base radius - circular cross-section radius

\[ h = R - \sqrt{R^2 - r^2} \]

Height calculation - from base radius

\[ A_{base} = \pi h(2R - h) \]

Base area - circular cross-section area

\[ R = \frac{r^2 + h^2}{2h} \]

Sphere radius - from cap dimensions

\[ \text{Hemisphere: } h = R \]

Special case - half sphere

\[ \bar{z} = \frac{3(2R - h)^2}{4(3R - h)} \]

Centroid - center of mass height

\[ V = \frac{\pi h}{6}(3r^2 + h^2) \]

Alternative volume - using base radius

\[ \text{Small cap: } V \approx \frac{\pi h^3}{3} \]

Approximation - when height much less than radius

\[ r^2 + (R - h)^2 = R^2 \]

Pythagorean relationship - geometric constraint

\[ \text{Integration: } \int \pi(R^2 - z^2) dz \]

Calculus derivation - volume by integration

🎯 Essential Insight: Spherical caps are like geometry's "curved domes" - they crown spheres with mathematical elegance! 🏛️

🚀 Real-World Applications

🏗️ Architecture & Construction

Dome Design & Structural Analysis

Architects use spherical caps for dome construction, calculating material requirements, structural load analysis, and designing curved roofing systems

🛢️ Fluid Mechanics & Storage

Tank Design & Volume Calculations

Engineers apply spherical caps for spherical tank design, calculating partial volumes, fluid level measurements, and storage capacity analysis

🔬 Optics & Lens Design

Curved Surfaces & Light Analysis

Optical engineers use spherical caps for lens curvature design, mirror surfaces, telescope components, and calculating optical surface areas

🌐 Geography & Earth Sciences

Spherical Earth Models & Mapping

Geographers apply spherical caps for calculating surface areas on Earth, modeling polar caps, analyzing spherical projections, and geographic calculations

The Magic: Architecture: Dome design and structural engineering, Fluid Mechanics: Tank volume and storage analysis, Optics: Lens curvature and surface design, Geography: Earth modeling and mapping calculations

🎯

Master the "Spherical Cap Expert" Method!

Before working with complex spherical cap problems, build systematic understanding of spherical geometry, integration methods, and three-dimensional relationships:

Key Insight: Spherical caps are like geometry's "curved domes" - they crown spheres with mathematical elegance! Think of yourself as a spherical cap expert who can systematically analyze curved dome relationships, apply fundamental measurements, and solve three-dimensional problems using essential properties and formulas. Master spherical cap calculations and curved geometry principles, and you can solve any dome problem, optimize curved designs, and handle real-world applications involving architectural structures and fluid systems!

💡 Why this matters:

🔋 Real-World Power:

Architecture: Dome design and structural engineering
Fluid Mechanics: Tank volume and storage calculations
Optics: Lens curvature and optical surface design
Geography: Earth modeling and mapping applications

🧠 Mathematical Insight:

Curved dome mastery: Understanding spherical geometry and three-dimensional relationships
Integration concepts: Essential foundations for volume and surface calculations
Geometric decomposition: Fundamental methods for complex curved analysis
Mathematical precision: Exact representations of spherical segments

🚀 Study Strategy:

1 Master Definition and Basic Components 📚

Spherical cap definition: portion of sphere cut by plane
Key dimensions: sphere radius, cap height, base radius
Geometric relationships: Pythagorean constraint and dependencies
Coordinate systems: positioning and orientation concepts

2 Learn Volume and Surface Area Formulas 🔍

Volume formula: V = (πh²/3)(3R - h)
Curved surface area: A = 2πRh
Base area: A = πh(2R - h)
Alternative formulas: using different parameter combinations

3 Apply Integration and Geometric Relationships 📊

Geometric constraints: r = √[h(2R - h)]
Integration derivation: volume by disk method
Special cases: hemisphere, small caps, quarter sphere
Centroid calculations: center of mass analysis

4 Master Real-World Applications and Problem Solving 🔗

Architectural applications: dome design and material calculations
Fluid mechanics: tank volumes and level measurements
Optical systems: lens design and surface curvature
Geographic modeling: Earth surface calculations and projections

When you master the "spherical cap expert" approach and understand spherical caps as curved domes with powerful geometric properties, you'll have the skills to solve any spherical segment problem efficiently, apply volume and surface formulas with confidence, analyze integration methods and geometric relationships systematically, and apply spherical cap concepts to real-world problems in architecture, fluid mechanics, optics, and geographic applications!

Memory Trick: "Spherical Cap Expert" - DEFINITION: sphere cut by plane, VOLUME: πh²(3R-h)/3, SURFACE: curved 2πRh plus base, APPLICATIONS: domes and tanks

🔑 Key Properties of Spherical Caps in Geometry

🧮

Curved Dome Mastery

Understanding spherical geometry and three-dimensional relationships

Fundamental curved solid connecting planar intersections with spheres

🔄

Integration Concepts

Essential foundations for volume and surface calculations

Systematic methods using calculus and geometric decomposition

📐

Geometric Decomposition

Fundamental methods for complex curved analysis

Essential for understanding sphere-plane intersection relationships

🌊

Universal Applications

Fundamental shapes appearing across architecture and engineering

Essential for modeling dome structures and curved surfaces

Universal Insight: Spherical caps are geometry's perfect curved domes - crowning spheres with mathematical elegance!

General Approach: Identify sphere radius and cap height, apply volume/surface formulas, use geometric relationships, solve engineering problems

Core Properties: Planar intersection with sphere, height-radius relationships, curved surface geometry, and integration foundations

Key Tools: Volume formulas, surface area calculations, geometric constraints, and integration methods

Applications: Architecture, fluid mechanics, optics, geography, and curved structure analysis

Spherical Cap – Surface Area and Volume Formulas
