Elliptic Cone Equation – Axis of Symmetry Z

🔑

Key Formula - Standard Form

\[ \frac{x^2}{a^2} + \frac{y^2}{b^2} = \frac{z^2}{c^2} \]

\[ \text{Alternative form: } \frac{x^2}{a^2} + \frac{y^2}{b^2} - \frac{z^2}{c^2} = 0 \]

🎯 What does this mean?

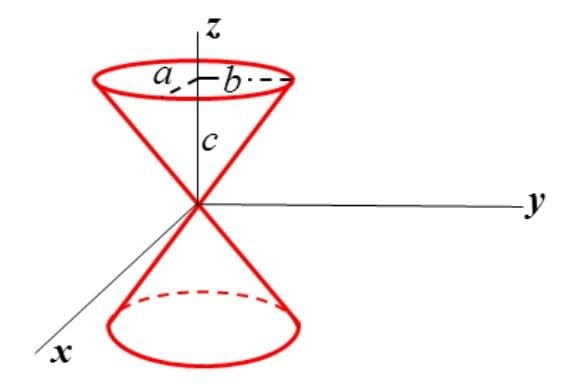

An elliptic cone is a three-dimensional surface that extends infinitely in both directions from a vertex, with elliptical cross-sections perpendicular to its axis. It's like stretching a circular cone to have oval-shaped cross-sections.

📐

Different Orientations

Elliptic cones can be oriented along different coordinate axes:

\[ \frac{x^2}{a^2} + \frac{y^2}{b^2} = \frac{z^2}{c^2} \quad \text{(Vertex at origin, axis along z)} \]

\[ \frac{x^2}{a^2} + \frac{z^2}{c^2} = \frac{y^2}{b^2} \quad \text{(Axis along y)} \]

\[ \frac{y^2}{b^2} + \frac{z^2}{c^2} = \frac{x^2}{a^2} \quad \text{(Axis along x)} \]

🔗

Translated Elliptic Cone

General form with vertex at point (h, k, l):

\[ \frac{(x-h)^2}{a^2} + \frac{(y-k)^2}{b^2} = \frac{(z-l)^2}{c^2} \]

\[ \text{Vertex: } (h, k, l) \]

\[ \text{Axis parallel to z-axis} \]

🔄

Cross-Sections and Traces

Understanding the cone through its cross-sections:

\[ \text{At } z = k: \frac{x^2}{a^2} + \frac{y^2}{b^2} = \frac{k^2}{c^2} \quad \text{(Ellipse)} \]

\[ \text{At } y = 0: \frac{x^2}{a^2} = \frac{z^2}{c^2} \Rightarrow z = \pm\frac{c}{a}x \quad \text{(Hyperbola)} \]

\[ \text{At } x = 0: \frac{y^2}{b^2} = \frac{z^2}{c^2} \Rightarrow z = \pm\frac{c}{b}y \quad \text{(Hyperbola)} \]

📊

Parametric Equations

Alternative representation using parameters:

\[ x = a \cdot t \cos(\theta) \]

\[ y = b \cdot t \sin(\theta) \]

\[ z = c \cdot t \]

\[ \text{Where: } t \in (-\infty, \infty), \theta \in [0, 2\pi] \]

📈

Directrices and Generators

Linear generators (straight lines) on the cone surface:

\[ \text{Two families of generators pass through each point on the cone} \]

\[ \text{Cone equation: } \frac{x^2}{a^2} + \frac{y^2}{b^2} - \frac{z^2}{c^2} = 0 \]

\[ \text{Can be factored as: } \left(\frac{x}{a} + \frac{iy}{b} - \frac{z}{c}\right)\left(\frac{x}{a} - \frac{iy}{b} + \frac{z}{c}\right) = 0 \]

🎯 Geometric Interpretation

An elliptic cone is a ruled surface - it can be generated by moving a straight line (generator) along an elliptical path while keeping one point fixed (the vertex). Every point on the cone lies on infinitely many straight lines that are part of the surface.

\[ a \]

Semi-axis parameter in x-direction - controls the width of elliptical cross-sections

\[ b \]

Semi-axis parameter in y-direction - controls the height of elliptical cross-sections

\[ c \]

Scale parameter in z-direction - controls the rate of expansion along the axis

\[ (h, k, l) \]

Vertex coordinates - the point where the cone's two nappes meet

\[ t \]

Parameter controlling distance from vertex - ranges over all real numbers

\[ \theta \]

Angular parameter - determines position around the elliptical cross-section

\[ \text{Vertex} \]

Point where both nappes of the cone meet - center of symmetry

\[ \text{Axis} \]

Line of symmetry passing through the vertex, typically aligned with a coordinate axis

\[ \text{Nappes} \]

Two symmetric parts of the cone extending infinitely on either side of the vertex

\[ \text{Generators} \]

Straight lines lying entirely on the cone surface - cone is a ruled surface

\[ \text{Cross-section} \]

Intersection of cone with planes perpendicular to axis - ellipses of varying size

\[ \text{Trace} \]

Intersection of cone with coordinate planes - typically hyperbolas

🎯 Essential Insight: An elliptic cone is like stretching a circular cone - it has elliptical cross-sections and extends infinitely in both directions from its vertex! 📊

🚀 Real-World Applications

🏗️ Architecture & Engineering

Structural Design & Acoustics

Conical roofs, towers, and acoustic reflectors use elliptic cone geometry for optimal load distribution and sound focusing

🛰️ Aerospace & Optics

Antenna Design & Light Focusing

Satellite dishes, telescope mirrors, and radar systems use conical surfaces to collect and focus electromagnetic radiation

🎨 Computer Graphics & 3D Modeling

Surface Generation & Animation

3D software uses parametric cone equations to create realistic conical objects and surfaces in games and films

🔬 Physics & Mathematics

Wave Propagation & Optimization

Light cones in relativity, shock wave modeling, and optimization problems involving conical constraint regions

The Magic: Architecture: Conical structures for stability, Optics: Focusing light and radio waves, Graphics: 3D surface modeling, Physics: Wave propagation and relativistic cones

🎯

Master the "Cone as Extension" Mindset!

Before memorizing equations, develop this core intuition about elliptic cones:

Key Insight: An elliptic cone is like an ellipse that expands as you move away from a central vertex - imagine an elliptical flashlight beam that gets wider as the light travels further!

💡 Why this matters:

🔋 Real-World Power:

Engineering: Conical structures provide maximum strength with minimal material
Optics: Parabolic and elliptic reflectors focus light and radio signals
Architecture: Domes and towers use conical geometry for stability and aesthetics
Physics: Light cones in relativity describe causally connected events

🧠 Mathematical Insight:

Cones are quadric surfaces - defined by second-degree polynomial equations
Cross-sections reveal the cone's elliptical nature at different heights
Parametric form shows how straight lines generate the entire surface

🚀 Study Strategy:

1 Visualize the Basic Shape 📐

Start with equation: x²/a² + y²/b² = z²/c²
Picture: Vertex at origin, expanding elliptically as |z| increases
Key insight: "How does the ellipse grow as we move along the axis?"

2 Understand Cross-Sections 📋

Horizontal cuts (z = constant): Ellipses with size proportional to |z|
Vertical cuts through axis: Hyperbolas showing the cone's profile
At vertex (z = 0): Single point where both nappes meet

3 Master Parametric Form 🔗

x = at cos(θ), y = bt sin(θ), z = ct
t controls distance from vertex, θ controls angular position
Shows cone as ruled surface: straight lines in parameter space

4 Connect to Applications 🎯

Architectural: Conical roofs and towers for structural strength
Optical: Reflectors and lenses that focus parallel rays
Mathematical: Intersection with planes creates conic sections

When you see elliptic cones as "expanding ellipses with a vertex," analytic geometry becomes a powerful tool for understanding three-dimensional shapes and their applications in engineering, physics, and computer graphics!

Memory Trick: "Cones Open Near Every Edge" - VERTEX: Central meeting point, ELLIPSE: Cross-sectional shape, EXPAND: Gets bigger moving away from vertex

🔑 Key Properties of Elliptic Cones

📐

Quadric Surface

Defined by second-degree polynomial equation in three variables

Belongs to the family of conic sections extended to 3D space

📈

Ruled Surface

Entirely composed of straight lines (generators) passing through vertex

Two families of generators intersect at every point on the surface

🔗

Symmetrical Structure

Two congruent nappes extending infinitely from the vertex

Symmetric about the vertex and axis of the cone

🎯

Conic Section Generator

Intersection with planes produces all types of conic sections

Ellipses, parabolas, hyperbolas, and degenerate cases all possible

Universal Insight: Elliptic cones are the 3D extension of ellipses - they show how a 2D curve can generate an entire surface by expanding from a single point!

Standard Form: x²/a² + y²/b² = z²/c² defines the basic elliptic cone

Cross-Sections: Horizontal cuts give ellipses, vertical cuts through axis give hyperbolas

Parametric Form: Shows cone as ruled surface generated by straight lines

Applications: Architecture, optics, computer graphics, and relativistic physics

Elliptic Cone – Equation with Z Axis as Axis
