Spherical Segment Geometry – Key Formulas

🔑

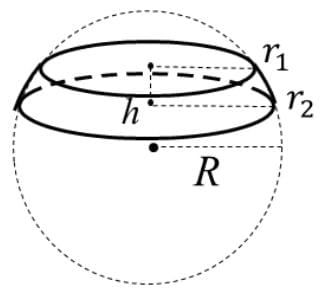

Key Definition - Spherical Segment and Its Components

\[ \text{Spherical segment: portion of sphere between two parallel planes} \]

\[ \text{Components: sphere radius } (R), \text{ segment height } (h), \text{ base radii } (r_1, r_2) \]

\[ \text{Height: perpendicular distance between cutting planes} \]

\[ \text{Bases: two circular cross-sections where planes cut sphere} \]

🎯 What does this mean?

Spherical segments represent the fundamental three-dimensional solids formed when two parallel planes cut through a sphere, creating curved cylindrical-like structures with circular bases and spherical curved surfaces, providing essential frameworks for understanding spherical geometry, volume calculations, and three-dimensional analysis in engineering and scientific applications. These versatile curved solids extend far beyond simple geometric constructions to encompass fluid mechanics, architectural design, optical systems, and sophisticated mathematical modeling that enables advanced spatial analysis, tank design, and spherical optimization. Spherical segments provide essential tools for analyzing curved surfaces, calculating volumes using integration methods, understanding spherical coordinates, and solving practical problems while maintaining mathematical precision and enabling complex three-dimensional reasoning. Understanding spherical segments is crucial for calculus, engineering design, physics, and applied mathematics where spherical relationships require systematic analysis, integration techniques, and practical applications, making them indispensable for solving tank problems, modeling curved containers, analyzing spherical shells, and designing segment-based structures across diverse mathematical, engineering, and scientific contexts.

📐

Fundamental Volume Formula - Integration Method

Essential volume calculation for spherical segments:

\[ V = \frac{\pi h}{6}(3r_1^2 + 3r_2^2 + h^2) \]

\[ V = \pi h\left(\frac{r_1^2 + r_2^2}{2} + \frac{h^2}{6}\right) \]

\[ V = \frac{\pi h}{3}(R^2 + Rh_1 + h_1^2) - \frac{\pi h}{3}(R^2 + Rh_2 + h_2^2) \]

\[ \text{where } h_1, h_2 \text{ are heights of individual caps} \]

🌊

Geometric Relationships - Radii and Heights

Key relationships between segment dimensions:

\[ r_1 = \sqrt{h_1(2R - h_1)}, \quad r_2 = \sqrt{h_2(2R - h_2)} \]

\[ h = |h_1 - h_2| \text{ (segment height)} \]

\[ d_1 = R - h_1, \quad d_2 = R - h_2 \text{ (distances from center)} \]

\[ R^2 = r_1^2 + d_1^2 = r_2^2 + d_2^2 \text{ (Pythagorean)} \]

🔄

Surface Area Components - Curved and Flat Surfaces

Different surface area calculations for segments:

\[ \text{Curved surface area: } A_{curved} = 2\pi Rh \]

\[ \text{Base areas: } A_1 = \pi r_1^2, \quad A_2 = \pi r_2^2 \]

\[ \text{Total surface area: } A_{total} = 2\pi Rh + \pi r_1^2 + \pi r_2^2 \]

\[ \text{Open segment: } A_{open} = 2\pi Rh \text{ (no bases)} \]

📊

Alternative Formulations - Cap Difference Method

Volume calculation using spherical cap differences:

\[ V = V_{cap1} - V_{cap2} \]

\[ V = \frac{\pi h_1^2}{3}(3R - h_1) - \frac{\pi h_2^2}{3}(3R - h_2) \]

\[ V = \frac{\pi}{3}(h_1^2 - h_2^2)(3R) - \frac{\pi}{3}(h_1^3 - h_2^3) \]

\[ V = \pi R(h_1^2 - h_2^2) - \frac{\pi}{3}(h_1^3 - h_2^3) \]

📈

Special Cases - Common Configurations

Spherical segments with specific orientations:

\[ \text{Symmetric segment: } r_1 = r_2, \text{ centered on sphere} \]

\[ \text{Equatorial band: } h = 2R\sin\theta, \text{ around equator} \]

\[ \text{Spherical shell: } V = \frac{4\pi}{3}(R_2^3 - R_1^3) \]

\[ \text{Thin segment: } V \approx 2\pi R^2 h \text{ when } h \ll R \]

🎯

Centroid and Moment - Center of Mass

Center of mass calculations for spherical segments:

\[ \bar{z} = \frac{h(r_1^2 + r_2^2 + 2r_1r_2)}{4(r_1^2 + r_2^2 + r_1r_2)} \]

\[ \text{Symmetric case: } \bar{z} = 0 \text{ (center of segment)} \]

\[ \text{First moment: } Q = V \times \bar{z} \]

\[ \text{Centroid on axis of symmetry through sphere center} \]

⚠️

Common Mistakes and Key Points

Critical considerations for spherical segment calculations:

\[ \text{Segment } \neq \text{ cap (has two bases, not one)} \]

\[ \text{Both base radii depend on sphere radius and positions} \]

\[ \text{Height is distance between planes, not from center} \]

\[ \text{Curved surface area } = 2\pi Rh \text{ regardless of base sizes} \]

🎯 Geometric Interpretation

Spherical segments represent the fundamental three-dimensional solids formed by cutting spheres with two parallel planes, creating curved cylindrical-like structures with circular bases and spherical surfaces, providing essential frameworks for understanding three-dimensional integration, fluid mechanics, and spherical geometry while maintaining mathematical precision and enabling sophisticated spatial analysis. These versatile curved solids extend beyond basic measurements to become essential tools for engineering design, architectural applications, tank design, and mathematical modeling where spherical relationships require precise analytical treatment. The unique properties of spherical segments enable systematic methods for volume calculations using integration, surface area computations, centroid analysis, and geometric relationships while maintaining spherical rigor and providing powerful problem-solving techniques. Understanding spherical segments as both geometric objects and analytical frameworks reveals their essential role in mathematics, engineering, and physics where curved containers, spherical shells, and three-dimensional regions require precise mathematical treatment, integration methods, and practical applications across diverse mathematical and technological contexts.

\[ V = \frac{\pi h}{6}(3r_1^2 + 3r_2^2 + h^2) \]

Volume - space enclosed by spherical segment

\[ A_{curved} = 2\pi Rh \]

Curved surface area - spherical surface portion

\[ r_1 = \sqrt{h_1(2R-h_1)} \]

Base radius - circular cross-section radius

\[ h = |h_1 - h_2| \]

Segment height - distance between cutting planes

\[ A_{total} = 2\pi Rh + \pi r_1^2 + \pi r_2^2 \]

Total surface area - curved plus both bases

\[ V = V_{cap1} - V_{cap2} \]

Cap difference - volume between two caps

\[ \text{Two parallel cutting planes} \]

Definition - segment formation method

\[ R^2 = r_i^2 + d_i^2 \]

Pythagorean constraint - geometric relationship

\[ \text{Symmetric: } r_1 = r_2 \]

Special case - equal base radii

\[ \bar{z} = \frac{h(r_1^2+r_2^2+2r_1r_2)}{4(r_1^2+r_2^2+r_1r_2)} \]

Centroid - center of mass location

\[ \text{Thin segment: } V \approx 2\pi R^2h \]

Approximation - when height much less than radius

\[ \text{Integration derivation} \]

Calculus method - volume by disk integration

🎯 Essential Insight: Spherical segments are like geometry's "curved barrels" - they slice spheres between parallel planes! 🛢️

🚀 Real-World Applications

🛢️ Fluid Mechanics & Tank Design

Storage Vessels & Volume Calculations

Engineers use spherical segments for designing spherical tanks, calculating partial volumes, liquid level measurements, and storage capacity analysis

🏗️ Architecture & Structural Design

Dome Construction & Building Elements

Architects apply spherical segments for dome sections, curved building elements, structural analysis, and calculating material requirements

🔬 Optics & Lens Manufacturing

Lens Geometry & Optical Systems

Optical engineers use spherical segments for thick lens design, compound lens systems, optical surface calculations, and light ray analysis

🌍 Geophysics & Earth Sciences

Earth Layers & Spherical Shells

Geophysicists apply spherical segments for modeling Earth's layers, calculating shell volumes, analyzing seismic wave propagation, and studying planetary structures

The Magic: Fluid Mechanics: Tank design and volume calculations, Architecture: Dome construction and structural elements, Optics: Lens manufacturing and optical systems, Geophysics: Earth modeling and shell analysis

🎯

Master the "Spherical Segment Navigator" Method!

Before working with complex spherical segment problems, build systematic understanding of parallel plane intersections, integration methods, and three-dimensional relationships:

Key Insight: Spherical segments are like geometry's "curved barrels" - they slice spheres between parallel planes! Think of yourself as a spherical segment navigator who can systematically analyze parallel plane relationships, apply fundamental measurements, and solve three-dimensional problems using essential properties and formulas. Master spherical segment calculations and integration principles, and you can solve any curved container problem, optimize tank designs, and handle real-world applications involving fluid systems and architectural structures!

💡 Why this matters:

🔋 Real-World Power:

Fluid Mechanics: Tank design and volume calculations
Architecture: Dome construction and structural analysis
Optics: Lens manufacturing and optical design
Geophysics: Earth modeling and shell calculations

🧠 Mathematical Insight:

Curved barrel mastery: Understanding parallel plane intersections with spheres
Integration concepts: Essential foundations for volume and surface calculations
Geometric decomposition: Fundamental methods for complex curved analysis
Mathematical precision: Exact representations of spherical regions

🚀 Study Strategy:

1 Master Definition and Basic Components 📚

Spherical segment definition: region between two parallel planes cutting sphere
Key dimensions: sphere radius, segment height, base radii
Geometric relationships: Pythagorean constraints and dependencies
Coordinate positioning: plane locations and orientations

2 Learn Volume and Surface Area Formulas 🔍

Volume formula: V = (πh/6)(3r₁² + 3r₂² + h²)
Curved surface area: A = 2πRh
Base areas: A₁ = πr₁², A₂ = πr₂²
Cap difference method: V = V_cap1 - V_cap2

3 Apply Integration and Geometric Relationships 📊

Geometric constraints: r₁ = √[h₁(2R - h₁)]
Integration derivation: volume by disk method
Special cases: symmetric segments, equatorial bands
Centroid calculations: center of mass analysis

4 Master Real-World Applications and Problem Solving 🔗

Fluid mechanics: tank design and volume calculations
Architectural applications: dome construction and structural analysis
Optical systems: lens design and manufacturing
Geophysical modeling: Earth layers and shell calculations

When you master the "spherical segment navigator" approach and understand spherical segments as curved barrels with powerful geometric properties, you'll have the skills to solve any parallel plane intersection problem efficiently, apply volume and surface formulas with confidence, analyze integration methods and geometric relationships systematically, and apply spherical segment concepts to real-world problems in fluid mechanics, architecture, optics, and geophysical applications!

Memory Trick: "Spherical Segment Navigator" - DEFINITION: sphere between parallel planes, VOLUME: πh(3r₁²+3r₂²+h²)/6, SURFACE: curved 2πRh plus bases, APPLICATIONS: tanks and domes

🔑 Key Properties of Spherical Segments in Geometry

🧮

Curved Barrel Mastery

Understanding parallel plane intersections with spheres

Fundamental solid connecting two circular bases with spherical surface

🔄

Integration Concepts

Essential foundations for volume and surface calculations

Systematic methods using calculus and geometric decomposition

📐

Geometric Decomposition

Fundamental methods for complex curved analysis

Essential for understanding sphere-plane intersection relationships

🌊

Universal Applications

Fundamental shapes appearing across engineering and physics

Essential for modeling tank systems and architectural elements

Universal Insight: Spherical segments are geometry's perfect curved barrels - slicing spheres between parallel planes!

General Approach: Identify sphere radius and cutting planes, apply volume/surface formulas, use geometric relationships, solve engineering problems

Core Properties: Two parallel plane intersections, circular bases, spherical curved surface, and integration foundations

Key Tools: Volume formulas, surface area calculations, geometric constraints, and integration methods

Applications: Fluid mechanics, architecture, optics, geophysics, and curved container analysis
