Plane in 3D Geometry – Equation and Normal Vector

🔑

Key Formula - General Form

\[ Ax + By + Cz + D = 0 \]

\[ \text{where } (A, B, C) \text{ is the normal vector to the plane} \]

\[ \text{This is the most commonly used equation of a plane, where } A, B, C \text{ define the normal vector to the plane.} \]

🎯 What does this mean?

A plane in 3D geometry is a flat, two-dimensional surface that extends infinitely in all directions within that surface. It can be uniquely defined by a normal vector (perpendicular direction) and a point it passes through, creating a fundamental building block for three-dimensional geometry and spatial analysis.

📐

Different Forms of Plane Equations

Planes can be expressed in various mathematical forms:

\[ Ax + By + Cz + D = 0 \quad \text{(General Form)} \]

\[ \vec{n} \cdot (\vec{r} - \vec{r_0}) = 0 \quad \text{(Vector Form)} \]

\[ \frac{x}{a} + \frac{y}{b} + \frac{z}{c} = 1 \quad \text{(Intercept Form)} \]

\[ A(x - x_0) + B(y - y_0) + C(z - z_0) = 0 \quad \text{(Point-Normal Form)} \]

📊

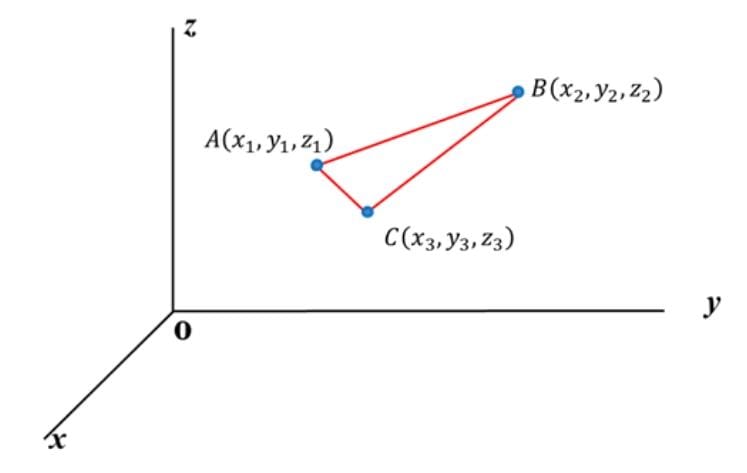

Plane Passing Through Three Points

Expanded form using three points:

\[ \begin{vmatrix} x - x_1 & y - y_1 & z - z_1 \\ x_2 - x_1 & y_2 - y_1 & z_2 - z_1 \\ x_3 - x_1 & y_3 - y_1 & z_3 - z_1 \end{vmatrix} = 0 \]

\[ \text{This form uses the determinant to ensure the three vectors lie in the same plane.} \]

\[ \text{Expanded Form: } \begin{vmatrix} y_2 - y_1 & z_2 - z_1 \\ y_3 - y_1 & z_3 - z_1 \end{vmatrix}(x - x_1) + \begin{vmatrix} z_2 - z_1 & x_2 - x_1 \\ z_3 - z_1 & x_3 - x_1 \end{vmatrix}(y - y_1) + \begin{vmatrix} x_2 - x_1 & y_2 - y_1 \\ x_3 - x_1 & y_3 - y_1 \end{vmatrix}(z - z_1) = 0 \]

🔗

Plane Through Three Points

Constructing plane equation from three non-collinear points:

\[ \text{Given points: } P_1(x_1, y_1, z_1), P_2(x_2, y_2, z_2), P_3(x_3, y_3, z_3) \]

\[ \vec{v_1} = P_2 - P_1, \quad \vec{v_2} = P_3 - P_1 \]

\[ \text{Normal vector: } \vec{n} = \vec{v_1} \times \vec{v_2} \]

\[ \text{Plane equation: } \vec{n} \cdot (P - P_1) = 0 \]

📏

Normal Form

The normal form uses angles α, β, γ made by the perpendicular from the origin:

\[ x \cos\alpha + y \cos\beta + z \cos\gamma = p \]

\[ \text{where } p \text{ is the distance from origin to the plane.} \]

🔄

Distance Calculations

Important distance measurements involving planes:

\[ \text{Distance from point } (x_0, y_0, z_0) \text{ to plane } Ax + By + Cz + D = 0: \]

\[ d = \frac{|Ax_0 + By_0 + Cz_0 + D|}{\sqrt{A^2 + B^2 + C^2}} \]

\[ \text{The perpendicular distance from point } M(x_0, y_0, z_0) \text{ to the plane is:} \]

\[ d = \frac{|Ax_0 + By_0 + Cz_0 + D|}{\sqrt{A^2 + B^2 + C^2}} \]

\[ \text{Distance between parallel planes } Ax + By + Cz + D_1 = 0 \text{ and } Ax + By + Cz + D_2 = 0: \]

\[ d = \frac{|D_1 - D_2|}{\sqrt{A^2 + B^2 + C^2}} \]

📊

Angle Between Planes

Finding angles between intersecting planes:

\[ \text{Plane 1: } A_1x + B_1y + C_1z + D_1 = 0 \text{ with normal } \vec{n_1} = (A_1, B_1, C_1) \]

\[ \text{Plane 2: } A_2x + B_2y + C_2z + D_2 = 0 \text{ with normal } \vec{n_2} = (A_2, B_2, C_2) \]

\[ \cos\theta = \frac{|\vec{n_1} \cdot \vec{n_2}|}{|\vec{n_1}||\vec{n_2}|} = \frac{|A_1A_2 + B_1B_2 + C_1C_2|}{\sqrt{A_1^2 + B_1^2 + C_1^2}\sqrt{A_2^2 + B_2^2 + C_2^2}} \]

📈

Parametric Form of Planes

Alternative representation using parameters:

\[ \vec{r}(s, t) = \vec{r_0} + s\vec{u} + t\vec{v} \]

\[ \text{where } \vec{r_0} \text{ is a point on plane, } \vec{u} \text{ and } \vec{v} \text{ are direction vectors} \]

\[ \text{Normal vector: } \vec{n} = \vec{u} \times \vec{v} \]

\[ \text{Parameters } s, t \in (-\infty, \infty) \]

🎯

Special Plane Relationships

Important conditions for plane relationships:

\[ \text{Parallel planes: } \frac{A_1}{A_2} = \frac{B_1}{B_2} = \frac{C_1}{C_2} \neq \frac{D_1}{D_2} \]

\[ \text{Perpendicular planes: } A_1A_2 + B_1B_2 + C_1C_2 = 0 \]

\[ \text{Coordinate planes: } xy\text{-plane: } z = 0, \quad xz\text{-plane: } y = 0, \quad yz\text{-plane: } x = 0 \]

\[ \text{Line of intersection: Solve system of two plane equations simultaneously} \]

🎯 Geometric Interpretation

A plane in 3D space represents the extension of the 2D concept of a flat surface into three dimensions. It has no thickness and extends infinitely in all directions within the plane. Every plane can be uniquely determined by either three non-collinear points or a point and a normal vector, making it fundamental for describing flat surfaces in engineering, computer graphics, and spatial analysis.

\[ A, B, C \]

Coefficients of the normal vector - determine the orientation of the plane

\[ D \]

Constant term - determines the distance of plane from origin

\[ \vec{n} \]

Normal vector - vector perpendicular to the plane surface

\[ \vec{r_0} \]

Position vector of a known point on the plane

\[ \vec{r} \]

Position vector of any point on the plane

\[ a, b, c \]

Intercepts where plane crosses x, y, z axes respectively

\[ s, t \]

Parameters in parametric form - control position within the plane

\[ \vec{u}, \vec{v} \]

Direction vectors lying in the plane - span the plane surface

\[ d \]

Distance from point to plane or between parallel planes

\[ \theta \]

Angle between two planes - measured between their normal vectors

\[ \times \]

Cross product operation - used to find normal vectors

\[ \cdot \]

Dot product operation - used for angles and perpendicularity tests

🎯 Essential Insight: A plane is like an infinite flat sheet in 3D space - it needs both a direction (normal vector) and a position to be uniquely defined! 📊

🚀 Real-World Applications

✈️ Aviation & Aerospace

Flight Planning & Navigation

Aircraft navigation systems use plane equations to define flight levels, restricted airspace boundaries, and optimal flight path planning in three-dimensional space

🏗️ Architecture & Construction

Building Design & Structural Analysis

Architects and engineers use plane geometry for floor plans, wall orientations, roof angles, and ensuring structural elements are properly aligned in 3D space

🎮 Computer Graphics & Gaming

3D Rendering & Collision Detection

Game engines and graphics software use plane equations for surface rendering, collision detection, clipping algorithms, and determining object visibility in 3D scenes

🔬 Scientific Modeling & Analysis

Crystallography & Material Science

Scientists use plane equations to describe crystal faces, cleavage planes in minerals, and molecular orientations in materials research and structural analysis

The Magic: Aviation: Flight level definitions and airspace boundaries, Architecture: Building surface orientations and alignments, Graphics: 3D rendering and collision systems, Science: Crystal structure and material analysis

🎯

Master the "Normal Vector" Mindset!

Before memorizing equations, develop this core intuition about planes:

Key Insight: A plane is like a sheet of paper in 3D space - you need to know which direction it's facing (normal vector) and where it's located (a point on it) to completely describe its position and orientation!

💡 Why this matters:

🔋 Real-World Power:

Aviation: Flight levels and airspace boundaries are defined using plane equations
Architecture: Building surfaces, walls, and floors require precise plane orientations
Graphics: 3D rendering engines use planes for surface definition and collision detection
Manufacturing: CNC machining and 3D printing require exact plane specifications

🧠 Mathematical Insight:

Normal vector (A,B,C) determines plane orientation in space
Constant term D determines distance from origin
Three non-collinear points uniquely determine a plane

🚀 Study Strategy:

1 Understand the Normal Vector 📐

Start with: Ax + By + Cz + D = 0 where (A,B,C) is normal vector
Picture: Arrow perpendicular to flat surface showing orientation
Key insight: "Which direction is this plane facing?"

2 Master Different Forms 📋

General form: Ax + By + Cz + D = 0 (most common)
Point-normal: A(x-x₀) + B(y-y₀) + C(z-z₀) = 0
Intercept form: x/a + y/b + z/c = 1 (shows axis crossings)

3 Practice Distance Calculations 🔗

Point to plane: Use formula with normal vector normalization
Between parallel planes: Difference in D terms divided by normal magnitude
Angle between planes: Use dot product of normal vectors

4 Connect to Applications 🎯

Architecture: Wall orientations and building surface alignments
Graphics: Surface rendering and 3D object collision detection
Engineering: Manufacturing tolerances and assembly specifications

When you see planes as "oriented flat surfaces with normal vectors," three-dimensional geometry becomes a powerful tool for architectural design, computer graphics, manufacturing, and countless spatial applications!

Memory Trick: "Planes Need Direction And Position" - NORMAL: Perpendicular vector shows orientation, POINT: Location on plane fixes position, FLAT: Infinite 2D surface in 3D space

🔑 Key Properties of Planes in 3D

📐

Infinite Flat Surface

Extends infinitely in all directions within the plane

Has no thickness - purely two-dimensional surface in 3D space

📈

Normal Vector Definition

Uniquely defined by normal vector and a point on the plane

Normal vector determines orientation and perpendicular direction

🔗

Linear Equation

Always represented by first-degree (linear) equation in x, y, z

General form Ax + By + Cz + D = 0 covers all possible planes

🎯

Intersection Properties

Two non-parallel planes intersect in a straight line

Three planes can intersect at a point, line, or not at all

Universal Insight: Planes are the fundamental flat surfaces in 3D space - they provide the foundation for understanding how flat objects are oriented and positioned in three dimensions!

General Form: Ax + By + Cz + D = 0 with normal vector (A,B,C)

Point-Normal Form: A(x-x₀) + B(y-y₀) + C(z-z₀) = 0 from known point and normal

Distance Formula: |Ax₀ + By₀ + Cz₀ + D|/√(A² + B² + C²) from point to plane

Applications: Aviation navigation, architectural design, computer graphics, and scientific modeling
