Right Triangle Formulas – Pythagorean Theorem & Properties

🔑

Key Definition - Right Triangle and Its Components

\[ \text{Right triangle: triangle with one angle exactly } 90° \]

\[ \text{Components: hypotenuse } (c), \text{ legs } (a, b), \text{ right angle } (90°) \]

\[ \text{Hypotenuse: longest side opposite the right angle} \]

\[ \text{Legs: two sides forming the right angle} \]

🎯 What does this mean?

Right triangles represent the fundamental geometric shapes characterized by one angle measuring exactly 90 degrees, providing essential frameworks for understanding trigonometry, distance calculations, and geometric relationships in practical applications. These foundational shapes extend far beyond simple geometric constructions to encompass navigation systems, engineering design, physics applications, and sophisticated mathematical modeling that enables advanced spatial analysis, architectural planning, and computational algorithms. Right triangles provide essential tools for analyzing perpendicular relationships, calculating distances using the Pythagorean theorem, understanding trigonometric ratios, and solving practical problems while maintaining mathematical precision and enabling complex geometric reasoning. Understanding right triangles is crucial for trigonometry, coordinate geometry, physics, and applied mathematics where perpendicular relationships require systematic analysis, trigonometric calculations, and practical applications, making them indispensable for solving distance problems, modeling angular relationships, analyzing architectural structures, and designing perpendicular systems across diverse mathematical, engineering, and scientific contexts.

📊

Key Properties of Right Triangles

Essential characteristics and relationships for right triangles:

1. Sides:

The side opposite the right angle is called the hypotenuse (c), which is the longest side of the triangle.
The other two sides, called legs, are labeled as a and b.

2. Pythagorean Theorem:

The relationship between the sides of a right triangle is given by:

\[ a^2 + b^2 = c^2 \]

This formula helps calculate the length of any side when the other two sides are known.

3. Area:

The area of a right triangle is calculated using:

\[ A = \frac{1}{2}ab = \frac{1}{2}ch \]

Where:

a and b: Lengths of the legs.
c: Length of the hypotenuse.
h: Height corresponding to the hypotenuse.

4. Inversely Proportional Height Formula:

The reciprocal of the square of the height (h) is related to the squares of the legs:

\[ \frac{1}{h^2} = \frac{1}{a^2} + \frac{1}{b^2} \]

5. Special Relationships:

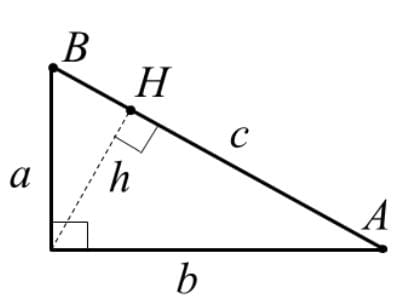

Using the segments of the hypotenuse (AH and BH) divided by the height h:

\[ a^2 = BH \cdot c \]
\[ b^2 = AH \cdot c \]
\[ h^2 = AH \cdot BH \]

📐

Pythagorean Theorem - Fundamental Relationship

The cornerstone relationship for right triangles:

\[ a^2 + b^2 = c^2 \]

\[ \text{Hypotenuse: } c = \sqrt{a^2 + b^2} \]

\[ \text{Leg from hypotenuse: } a = \sqrt{c^2 - b^2} \]

\[ \text{Converse: if } a^2 + b^2 = c^2 \text{, then triangle is right} \]

🌊

Trigonometric Ratios - Sine, Cosine, Tangent

Essential trigonometric relationships in right triangles:

\[ \sin\theta = \frac{\text{opposite}}{\text{hypotenuse}} = \frac{a}{c} \]

\[ \cos\theta = \frac{\text{adjacent}}{\text{hypotenuse}} = \frac{b}{c} \]

\[ \tan\theta = \frac{\text{opposite}}{\text{adjacent}} = \frac{a}{b} \]

\[ \text{Reciprocal ratios: } \csc\theta = \frac{c}{a}, \sec\theta = \frac{c}{b}, \cot\theta = \frac{b}{a} \]

🔄

Area and Perimeter - Measurements

Fundamental measurements for right triangles:

\[ \text{Area: } A = \frac{1}{2}ab \text{ (legs as base and height)} \]

\[ \text{Perimeter: } P = a + b + c \]

\[ \text{Semiperimeter: } s = \frac{a + b + c}{2} \]

\[ \text{Heron's formula: } A = \sqrt{s(s-a)(s-b)(s-c)} \]

📊

Special Right Triangles - 30-60-90 and 45-45-90

Common right triangles with known ratios:

\[ \text{45-45-90 triangle: sides in ratio } 1:1:\sqrt{2} \]

\[ \text{30-60-90 triangle: sides in ratio } 1:\sqrt{3}:2 \]

\[ \text{Isosceles right triangle: } a = b, c = a\sqrt{2} \]

\[ \text{3-4-5 triangle: } a = 3k, b = 4k, c = 5k \]

📈

Pythagorean Triples - Integer Solutions

Integer combinations satisfying the Pythagorean theorem:

\[ \text{Primitive triples: } (3,4,5), (5,12,13), (8,15,17), (7,24,25) \]

\[ \text{General formula: } a = m^2 - n^2, b = 2mn, c = m^2 + n^2 \]

\[ \text{where } m > n > 0, \gcd(m,n) = 1, \text{ and } m,n \text{ not both odd} \]

\[ \text{Scaled triples: multiply any triple by positive integer} \]

🎯

Altitude and Geometric Mean - Height Relationships

Altitude to hypotenuse and related relationships:

\[ \text{Altitude to hypotenuse: } h = \frac{ab}{c} \]

\[ \text{Geometric mean relations: } h^2 = p \cdot q \]

\[ \text{where } p, q \text{ are segments of hypotenuse divided by altitude} \]

\[ a^2 = c \cdot p, \quad b^2 = c \cdot q \]

⚠️

Common Mistakes and Key Points

Critical considerations for right triangle calculations:

\[ \text{Hypotenuse is always the longest side} \]

\[ \text{Right angle is opposite the hypotenuse} \]

\[ \sin^2\theta + \cos^2\theta = 1 \text{ (Pythagorean identity)} \]

\[ \text{Angles: } \alpha + \beta = 90° \text{ for the two acute angles} \]

🎯 Geometric Interpretation

Right triangles represent the fundamental geometric shapes characterized by perpendicular side relationships and the presence of one 90-degree angle, providing essential frameworks for understanding trigonometry, distance calculations, and orthogonal relationships while maintaining mathematical precision and enabling sophisticated geometric analysis. These foundational shapes extend beyond basic measurements to become essential tools for navigation, engineering design, physics applications, and mathematical modeling where perpendicular relationships require precise analytical treatment. The unique properties of right triangles enable systematic methods for distance calculations using the Pythagorean theorem, trigonometric analysis, coordinate geometry, and practical problem-solving while maintaining orthogonal rigor and providing powerful computational techniques. Understanding right triangles as both geometric objects and analytical frameworks reveals their essential role in mathematics, engineering, and science where perpendicular structures, angular measurements, and distance calculations require precise mathematical treatment, trigonometric analysis, and practical applications across diverse mathematical and technological contexts.

\[ a^2 + b^2 = c^2 \]

Pythagorean theorem - fundamental right triangle relationship

\[ \sin\theta = \frac{\text{opposite}}{\text{hypotenuse}} \]

Sine ratio - opposite side over hypotenuse

\[ \cos\theta = \frac{\text{adjacent}}{\text{hypotenuse}} \]

Cosine ratio - adjacent side over hypotenuse

\[ \tan\theta = \frac{\text{opposite}}{\text{adjacent}} \]

Tangent ratio - opposite over adjacent

\[ A = \frac{1}{2}ab \]

Area - half the product of legs

\[ \text{45-45-90: } 1:1:\sqrt{2} \]

Isosceles right triangle - equal legs

\[ \text{30-60-90: } 1:\sqrt{3}:2 \]

Special triangle - half of equilateral triangle

\[ h = \frac{ab}{c} \]

Altitude to hypotenuse - height formula

\[ \text{3-4-5 triple} \]

Pythagorean triple - integer side lengths

\[ \alpha + \beta = 90° \]

Complementary angles - two acute angles sum

\[ \sin^2\theta + \cos^2\theta = 1 \]

Pythagorean identity - fundamental trigonometric relation

\[ c = \sqrt{a^2 + b^2} \]

Hypotenuse calculation - longest side formula

🎯 Essential Insight: Right triangles are like geometry's "perpendicular powerhouses" - they unlock the secrets of angles and distances! 📐

🚀 Real-World Applications

🏗️ Engineering & Construction

Structural Analysis & Building Design

Engineers use right triangles for calculating structural loads, designing roof trusses, determining slopes, and ensuring perpendicular construction elements

🧭 Navigation & GPS

Distance Calculation & Positioning

Navigators apply right triangles for GPS calculations, determining distances, triangulation methods, and coordinate system transformations

🔬 Physics & Science

Force Analysis & Wave Studies

Physicists use right triangles for vector decomposition, analyzing forces, studying wave properties, and modeling projectile motion

💻 Computer Graphics & Gaming

3D Rendering & Animation

Developers apply right triangles for 3D transformations, lighting calculations, collision detection, and creating realistic visual effects

The Magic: Engineering: Structural analysis and construction precision, Navigation: GPS systems and distance calculations, Physics: Force analysis and vector decomposition, Graphics: 3D rendering and visual effects

🎯

Master the "Right Triangle Expert" Method!

Before working with complex right triangle problems, build systematic understanding of perpendicular relationships, Pythagorean theorem, and trigonometric ratios:

Key Insight: Right triangles are like geometry's "perpendicular powerhouses" - they unlock the secrets of angles and distances! Think of yourself as a right triangle expert who can systematically analyze perpendicular relationships, apply fundamental theorems, and solve geometric problems using essential properties and formulas. Master right triangle calculations and trigonometric principles, and you can solve any angle or distance problem, optimize structural designs, and handle real-world applications involving navigation systems and engineering analysis!

💡 Why this matters:

🔋 Real-World Power:

Engineering: Structural analysis and construction precision
Navigation: GPS systems and distance calculations
Physics: Force analysis and vector decomposition
Graphics: 3D rendering and computational geometry

🧠 Mathematical Insight:

Perpendicular power: Understanding right-angled relationships and orthogonal systems
Trigonometric mastery: Essential tools for angle and ratio calculations
Distance precision: Fundamental methods for spatial measurements
Mathematical foundation: Core principles underlying advanced geometry and calculus

🚀 Study Strategy:

1 Master Definition and Pythagorean Theorem 📚

Right triangle definition: one angle exactly 90 degrees
Component identification: hypotenuse, legs, and right angle
Pythagorean theorem: a² + b² = c²
Converse theorem: determining if triangle is right

2 Learn Trigonometric Ratios and Functions 🔍

Primary ratios: sine, cosine, tangent
Reciprocal ratios: cosecant, secant, cotangent
SOH-CAH-TOA memory device
Pythagorean identity: sin²θ + cos²θ = 1

3 Apply Special Triangles and Pythagorean Triples 📊

45-45-90 triangle: 1:1:√2 ratio
30-60-90 triangle: 1:√3:2 ratio
Common Pythagorean triples: 3-4-5, 5-12-13, 8-15-17
Altitude relationships and geometric means

4 Master Real-World Applications and Problem Solving 🔗

Engineering applications: structural analysis and construction
Navigation systems: GPS calculations and triangulation
Physics problems: force vectors and projectile motion
Computer graphics: 3D transformations and rendering

When you master the "right triangle expert" approach and understand right triangles as perpendicular powerhouses with fundamental geometric properties, you'll have the skills to solve any angle or distance problem efficiently, apply Pythagorean theorem and trigonometric ratios with confidence, analyze special triangles and coordinate representations systematically, and apply right triangle concepts to real-world problems in engineering, navigation, physics, and computer graphics applications!

Memory Trick: "Right Triangle Expert" - DEFINITION: one 90-degree angle, PYTHAGOREAN: a² + b² = c², TRIGONOMETRY: SOH-CAH-TOA ratios, APPLICATIONS: engineering and navigation

🔑 Key Properties of Right Triangles in Geometry

🧮

Perpendicular Power

Understanding right-angled relationships and orthogonal systems

Fundamental shape connecting algebra with geometric measurements

🔄

Trigonometric Mastery

Essential tools for angle and ratio calculations

Systematic methods enabling sophisticated angular analysis

📐

Distance Precision

Fundamental methods for spatial measurements

Essential for understanding coordinate geometry and navigation

🌊

Universal Applications

Fundamental shapes appearing across science and technology

Essential for modeling perpendicular structures and angular relationships

Universal Insight: Right triangles are geometry's perfect perpendicular powerhouses - unlocking the secrets of angles and distances!

General Approach: Identify right angle and sides, apply Pythagorean theorem, use trigonometric ratios, solve practical problems

Core Properties: One 90° angle, Pythagorean relationship, trigonometric ratios, and complementary acute angles

Key Tools: Pythagorean theorem, trigonometric functions, special triangle ratios, and geometric mean relationships

Applications: Engineering, navigation, physics, computer graphics, and spatial analysis
