Trapezoid Geometry Formulas – Area & Properties

🔑

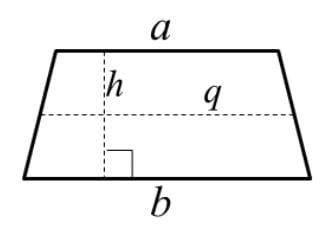

Key Definition - Trapezoid and Its Components

\[ \text{Trapezoid: quadrilateral with exactly one pair of parallel sides} \]

\[ \text{Components: parallel bases } (a, b), \text{ height } (h), \text{ legs } (c, d) \]

\[ \text{Bases: parallel sides, typically } a \text{ (top) and } b \text{ (bottom)} \]

\[ \text{Legs: non-parallel sides connecting the bases} \]

🎯 What does this mean?

Trapezoids represent the fundamental quadrilaterals characterized by having exactly one pair of parallel sides, providing essential frameworks for understanding partial parallelism, area calculations, and geometric relationships in practical applications. These versatile shapes extend far beyond simple geometric constructions to encompass architectural design, engineering applications, structural analysis, and sophisticated mathematical modeling that enables advanced spatial reasoning, construction planning, and geometric optimization. Trapezoids provide essential tools for analyzing parallel relationships, calculating areas using average base methods, understanding angular properties, and solving practical problems while maintaining mathematical precision and enabling complex geometric reasoning. Understanding trapezoids is crucial for geometry, engineering design, architecture, and applied mathematics where partial parallel relationships require systematic analysis, area calculations, and practical applications, making them indispensable for solving construction problems, modeling tapered structures, analyzing trapezoidal frameworks, and designing trapezoid-based systems across diverse mathematical, architectural, and engineering contexts.

📐

Fundamental Measurements - Area and Perimeter

Essential measurements and properties of trapezoids:

\[ \text{Area: } A = \frac{1}{2}(a + b)h \]

\[ \text{Alternative area: } A = \frac{a + b}{2} \times h \text{ (average base times height)} \]

\[ \text{Perimeter: } P = a + b + c + d \]

\[ \text{Median (midsegment): } m = \frac{a + b}{2} \]

🌊

Special Types - Isosceles and Right Trapezoids

Classification and special cases of trapezoids:

\[ \text{Isosceles trapezoid: legs equal } (c = d), \text{ base angles equal} \]

\[ \text{Right trapezoid: one leg perpendicular to bases } (\angle = 90°) \]

\[ \text{Scalene trapezoid: all sides different lengths} \]

\[ \text{Acute trapezoid: all angles less than } 90° \]

🔄

Angle Relationships - Parallel Side Properties

Angular properties and relationships in trapezoids:

\[ \text{Co-interior angles sum: } \alpha + \beta = 180° \text{ (same side of transversal)} \]

\[ \text{Sum of all angles: } \alpha + \beta + \gamma + \delta = 360° \]

\[ \text{Isosceles trapezoid: base angles equal } (\alpha = \delta, \beta = \gamma) \]

\[ \text{Alternate interior angles: equal for parallel lines} \]

📊

Coordinate Geometry - Analytical Methods

Working with trapezoids in coordinate systems:

\[ \text{Vertices: } A(x_1,y_1), B(x_2,y_2), C(x_3,y_3), D(x_4,y_4) \]

\[ \text{Parallel condition: } \frac{y_2-y_1}{x_2-x_1} = \frac{y_4-y_3}{x_4-x_3} \text{ (equal slopes)} \]

\[ \text{Area using coordinates: } A = \frac{1}{2}|x_1(y_2-y_4) + x_2(y_3-y_1) + \cdots| \]

\[ \text{Height: perpendicular distance between parallel lines} \]

📈

Midsegment Properties - Median Theorems

Properties of the trapezoid midsegment:

\[ \text{Midsegment length: } m = \frac{a + b}{2} \]

\[ \text{Midsegment parallel to bases: } m \parallel a \parallel b \]

\[ \text{Area using midsegment: } A = m \times h \]

\[ \text{Midsegment divides trapezoid into equal areas} \]

🎯

Diagonal Properties - Intersection and Lengths

Properties of trapezoid diagonals:

\[ \text{Isosceles trapezoid: diagonals equal } (d_1 = d_2) \]

\[ \text{General trapezoid: diagonals usually unequal} \]

\[ \text{Diagonal intersection: divides each diagonal proportionally} \]

\[ \text{Area using diagonals: } A = \frac{1}{2}d_1 d_2 \sin\theta \text{ (for isosceles)} \]

⚠️

Common Mistakes and Key Points

Critical considerations for trapezoid calculations:

\[ \text{Exactly one pair of parallel sides (not two pairs)} \]

\[ \text{Height is perpendicular distance, not leg length} \]

\[ \text{Area formula uses sum } (a + b), \text{ not difference} \]

\[ \text{Midsegment length is average of bases, not arithmetic mean} \]

🎯 Geometric Interpretation

Trapezoids represent the fundamental quadrilaterals characterized by exactly one pair of parallel sides, providing essential frameworks for understanding partial parallelism, tapered structures, and geometric optimization while maintaining mathematical precision and enabling practical geometric analysis. These versatile shapes extend beyond basic measurements to become essential tools for architectural design, engineering applications, structural analysis, and mathematical modeling where partial parallel relationships require precise analytical treatment. The unique properties of trapezoids enable systematic methods for area calculations using average base methods, angle analysis, coordinate representations, and midsegment properties while maintaining geometric rigor and providing powerful problem-solving techniques. Understanding trapezoids as both geometric objects and analytical frameworks reveals their essential role in mathematics, architecture, and engineering where tapered structures, partial parallelism, and geometric optimization require precise mathematical treatment, practical considerations, and design applications across diverse mathematical and technological contexts.

\[ A = \frac{1}{2}(a + b)h \]

Area - average of parallel bases times height

\[ P = a + b + c + d \]

Perimeter - sum of all four sides

\[ m = \frac{a + b}{2} \]

Midsegment - average length of parallel bases

\[ \text{One pair parallel sides} \]

Definition - exactly one pair of parallel sides

\[ \alpha + \beta = 180° \]

Co-interior angles - supplementary on same side

\[ \text{Isosceles: } c = d \]

Special case - equal legs and base angles

\[ \text{Right trapezoid: one } 90° \text{ angle} \]

Special case - perpendicular leg to bases

\[ \text{Height: perpendicular distance} \]

Measurement - between parallel bases

\[ \text{Equal slopes for parallel sides} \]

Coordinate condition - parallel line property

\[ \text{Midsegment parallel to bases} \]

Property - midsegment connects leg midpoints

\[ \text{Diagonals equal (isosceles only)} \]

Diagonal property - for symmetric trapezoids

\[ \text{Sum of angles: } 360° \]

Angle sum - quadrilateral property

🎯 Essential Insight: Trapezoids are like geometry's "partial parallelograms" - they balance order with flexibility through one parallel pair! ⚖️

🚀 Real-World Applications

🏗️ Architecture & Construction

Structural Design & Building Elements

Architects use trapezoids for roof designs, bridge supports, retaining walls, amphitheater seating, and calculating areas for tapered structures

🛣️ Civil Engineering

Road Design & Infrastructure

Engineers apply trapezoids for road cross-sections, drainage channels, embankments, dam profiles, and calculating earthwork volumes

🏭 Manufacturing & Design

Product Design & Material Cutting

Manufacturers use trapezoids for sheet metal fabrication, clothing patterns, furniture design, and optimizing material usage

📊 Data Visualization

Charts & Statistical Graphics

Designers apply trapezoids for creating funnel charts, flow diagrams, infographics, and representing hierarchical data structures

The Magic: Architecture: Tapered structures and roof design, Civil Engineering: Road profiles and infrastructure, Manufacturing: Material optimization and cutting patterns, Visualization: Data charts and flow diagrams

🎯

Master the "Trapezoid Tactician" Method!

Before working with complex trapezoid problems, build systematic understanding of partial parallelism, area calculations, and angular relationships:

Key Insight: Trapezoids are like geometry's "partial parallelograms" - they balance order with flexibility through one parallel pair! Think of yourself as a trapezoid tactician who can systematically analyze partial parallel relationships, apply fundamental measurements, and solve geometric problems using essential properties and formulas. Master trapezoid calculations and angular principles, and you can solve any tapered structure problem, optimize construction designs, and handle real-world applications involving architectural elements and engineering structures!

💡 Why this matters:

🔋 Real-World Power:

Architecture: Tapered structures and roof systems
Civil Engineering: Road design and infrastructure elements
Manufacturing: Material optimization and cutting efficiency
Visualization: Data representation and flow diagrams

🧠 Mathematical Insight:

Partial parallelism: Understanding one-pair parallel relationships and properties
Area mastery: Essential tools for average base calculations
Angular relationships: Fundamental methods for co-interior angle analysis
Mathematical precision: Exact representations of tapered quadrilaterals

🚀 Study Strategy:

1 Master Definition and Basic Properties 📚

Trapezoid definition: exactly one pair of parallel sides
Component identification: bases, legs, height, and angles
Special types: isosceles, right, scalene, and acute trapezoids
Parallel line properties: co-interior and alternate angles

2 Learn Area and Measurement Formulas 🔍

Area formula: A = (1/2)(a + b)h
Perimeter calculation: P = a + b + c + d
Midsegment length: m = (a + b)/2
Height distinction: perpendicular distance vs leg length

3 Apply Coordinate Geometry and Special Cases 📊

Coordinate methods: slope conditions for parallel sides
Isosceles properties: equal legs and diagonals
Midsegment properties: parallel to bases and area division
Diagonal relationships: equal for isosceles, unequal generally

4 Master Real-World Applications and Problem Solving 🔗

Architectural applications: roof design and structural elements
Civil engineering: road profiles and infrastructure design
Manufacturing optimization: material cutting and pattern design
Data visualization: charts, diagrams, and information graphics

When you master the "trapezoid tactician" approach and understand trapezoids as partial parallelograms with balanced geometric properties, you'll have the skills to solve any tapered quadrilateral problem efficiently, apply area and angle formulas with confidence, analyze coordinate representations and special cases systematically, and apply trapezoid concepts to real-world problems in architecture, civil engineering, manufacturing, and data visualization applications!

Memory Trick: "Trapezoid Tactician" - DEFINITION: one pair parallel sides, AREA: (1/2)(a+b)h average method, ANGLES: co-interior supplementary, APPLICATIONS: tapered structures

🔑 Key Properties of Trapezoids in Geometry

🧮

Partial Parallelism

Understanding one-pair parallel relationships and properties

Fundamental quadrilateral balancing order with flexibility

🔄

Area Mastery

Essential tools for average base calculations

Systematic methods using parallel base relationships

📐

Angular Relationships

Fundamental methods for co-interior angle analysis

Essential for understanding parallel line properties

🌊

Universal Applications

Fundamental shapes appearing across architecture and engineering

Essential for modeling tapered structures and flow systems

Universal Insight: Trapezoids are geometry's perfect partial parallelograms - balancing order with flexibility through one parallel pair!

General Approach: Identify parallel bases and legs, apply area formulas, use angle relationships, solve practical problems

Core Properties: One pair parallel sides, co-interior supplementary angles, midsegment properties, and base-height relationships

Key Tools: Area formulas, midsegment theorems, angle relationships, and coordinate geometry methods

Applications: Architecture, civil engineering, manufacturing, data visualization, and structural design
