Lozenge (Rhombus) Formulas – Area & Properties

🔑

Key Definition - Lozenge and Its Components

\[ \text{Lozenge: rhombus with acute and obtuse angles (diamond shape)} \]

\[ \text{All sides equal: } AB = BC = CD = DA = s \]

\[ \text{Opposite angles equal: } \alpha = \gamma, \beta = \delta \]

\[ \text{Adjacent angles supplementary: } \alpha + \beta = 180° \]

🎯 What does this mean?

Lozenges represent the fundamental diamond-shaped quadrilaterals that are rhombuses with distinctly acute and obtuse angles, providing essential frameworks for understanding parallelogram properties, symmetry analysis, and geometric transformations in crystallography and decorative design. These elegant shapes extend far beyond simple geometric constructions to encompass tessellation patterns, crystallographic structures, architectural applications, and sophisticated mathematical modeling that enables advanced spatial analysis, pattern recognition, and structural design. Lozenges provide essential tools for analyzing geometric symmetries, calculating areas using diagonal methods, understanding angle relationships, and solving practical problems while maintaining mathematical precision and enabling complex geometric reasoning. Understanding lozenges is crucial for parallelogram geometry, crystallography, pattern design, and applied mathematics where diamond-shaped relationships require systematic analysis, symmetry considerations, and practical applications, making them indispensable for solving tessellation problems, modeling crystal lattices, analyzing decorative patterns, and designing lozenge-based structures across diverse mathematical, artistic, and scientific contexts.

📋

Key Properties of a Lozenge

Essential characteristics that define a lozenge:

1. All Sides Equal:

Every side has the same length.

\[ AB = BC = CD = DA = a \]

2. Opposite Angles:

Equal in measure.

\[ \alpha = \gamma, \quad \beta = \delta \]

3. Diagonals:

Bisect each other at right angles.

\[ \text{Diagonals are perpendicular: } m \perp n \]

4. Angles:

Adjacent angles are supplementary (180°).

\[ \alpha + \beta = 180° \]

5. Special Case:

A square is a lozenge with all angles equal to 90°.

\[ \text{Square: } \alpha = \beta = \gamma = \delta = 90° \]

📐

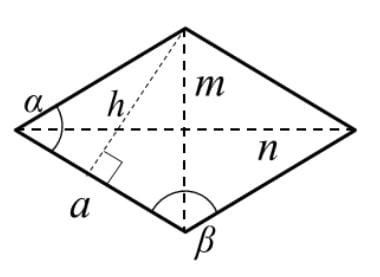

Key Formulas for a Lozenge

Essential measurements and calculations for lozenges:

1. Perimeter P:

The total length around the lozenge:

\[ P = 4a \]

where:

a: Length of one side

2. Area A:

The area can be calculated using either the diagonals or base and height:

\[ A = \frac{m \times n}{2} = a \times h \]

where:

m, n: Lengths of diagonals
a: Side length
h: Height (perpendicular distance between opposite sides)

3. Angle Relationship:

The sum of adjacent angles is always 180°:

\[ \alpha + \beta = 180° \]

4. Diagonal Formula:

Relationship between side length and diagonals:

\[ m^2 + n^2 = 4a^2 \]

Derived using the Pythagorean theorem, as diagonals intersect at right angles.

5. Height h:

Height can be computed using two different formulas:

\[ h = \frac{mn}{2a} = a \sin(\alpha) \]

where:

mn: Product of diagonals
α: Interior angle

🌊

Diagonal Properties - Perpendicular Bisectors

Special properties of lozenge diagonals:

\[ \text{Diagonals perpendicular: } d_1 \perp d_2 \]

\[ \text{Diagonals bisect each other at center point} \]

\[ \text{Half-diagonals: } h_1 = \frac{d_1}{2}, h_2 = \frac{d_2}{2} \]

\[ \text{Side length from half-diagonals: } s = \sqrt{h_1^2 + h_2^2} \]

🔄

Angle Relationships - Acute and Obtuse Pairs

Angular properties and relationships in lozenges:

\[ \text{Opposite angles equal: } \alpha = \gamma, \beta = \delta \]

\[ \text{Supplementary pairs: } \alpha + \beta = 180°, \gamma + \delta = 180° \]

\[ \text{Acute angle: } \alpha < 90°, \text{ obtuse angle: } \beta > 90° \]

\[ \text{Diagonal angle relationship: } \tan\frac{\alpha}{2} = \frac{h_2}{h_1} \]

📊

Coordinate Geometry - Analytical Methods

Working with lozenges in coordinate systems:

\[ \text{Center at origin: vertices at } (\pm h_1, 0), (0, \pm h_2) \]

\[ \text{General position: } (x_c \pm h_1, y_c), (x_c, y_c \pm h_2) \]

\[ \text{Rotated lozenge: apply rotation matrix to standard position} \]

\[ \text{Slope relationship: } m_1 \cdot m_2 = -1 \text{ (perpendicular diagonals)} \]

📈

Symmetry Properties - Rotational and Reflectional

Symmetry characteristics of lozenges:

\[ \text{2-fold rotational symmetry: } 180° \text{ rotation about center} \]

\[ \text{2 lines of reflection: along both diagonals} \]

\[ \text{Point symmetry: central symmetry about intersection} \]

\[ \text{Dihedral group: } D_2 \text{ (4 symmetries total)} \]

🎯

Tessellation and Patterns - Geometric Arrangements

Lozenge arrangements and tiling patterns:

\[ \text{Monohedral tiling: lozenges can tile the plane} \]

\[ \text{Vertex configuration: depends on angles } \alpha \text{ and } \beta \]

\[ \text{Rhombic tessellation: parallelogram lattice structure} \]

\[ \text{Crystallographic applications: rhombohedral lattices} \]

⚠️

Common Mistakes and Key Points

Critical considerations for lozenge calculations:

\[ \text{Lozenge } \neq \text{ square (angles not all } 90° \text{)} \]

\[ \text{Area requires diagonal product, not side squared} \]

\[ \text{Diagonals not equal (unless it's a square)} \]

\[ \text{All lozenges are rhombuses, but not all rhombuses are lozenges} \]

🎯 Geometric Interpretation

Lozenges represent the fundamental diamond-shaped quadrilaterals that are rhombuses with distinctly acute and obtuse angle pairs, providing essential frameworks for understanding parallelogram symmetries, crystallographic structures, and geometric tessellations while maintaining mathematical precision and enabling sophisticated spatial analysis. These elegant shapes extend beyond basic measurements to become essential tools for crystallography, pattern design, architectural applications, and mathematical modeling where diamond-shaped relationships require precise analytical treatment. The unique properties of lozenges enable systematic methods for area calculations using diagonal products, angle analysis, coordinate representations, and symmetry operations while maintaining geometric rigor and providing powerful problem-solving techniques. Understanding lozenges as both geometric objects and analytical frameworks reveals their essential role in mathematics, crystallography, and design where diamond-shaped structures, decorative patterns, and lattice arrangements require precise mathematical treatment, symmetry considerations, and practical applications across diverse mathematical and artistic contexts.

\[ A = \frac{1}{2}d_1 d_2 \]

Area - using perpendicular diagonal product

\[ A = s^2 \sin\alpha \]

Area - using side length and angle

\[ P = 4s \]

Perimeter - four equal sides

\[ d_1^2 + d_2^2 = 4s^2 \]

Pythagorean relationship - diagonals and sides

\[ d_1 \perp d_2 \]

Diagonal property - perpendicular intersection

\[ \alpha + \beta = 180° \]

Supplementary angles - adjacent angle sum

\[ \alpha = \gamma, \beta = \delta \]

Opposite angles - equal angle pairs

\[ s = \sqrt{h_1^2 + h_2^2} \]

Side length - from half-diagonal lengths

\[ \text{2-fold rotational symmetry} \]

Rotation - 180° symmetry about center

\[ \text{2 reflection lines} \]

Mirror symmetry - along both diagonals

\[ \text{Rhombic tessellation} \]

Tiling property - parallelogram lattice patterns

\[ D_2 \text{ symmetry group} \]

Mathematical group - 4 total symmetries

🎯 Essential Insight: Lozenges are like geometry's "elegant diamonds" - they combine symmetry with distinctive angular character! 💎

🚀 Real-World Applications

🔬 Crystallography & Materials Science

Crystal Lattices & Molecular Structures

Scientists use lozenges for modeling rhombohedral crystal systems, lattice structures, molecular arrangements, and mineral formations

🎨 Art & Design

Decorative Patterns & Visual Arts

Artists apply lozenges for creating tessellated patterns, textile designs, decorative motifs, and geometric art compositions

🏗️ Architecture & Engineering

Structural Elements & Building Design

Architects use lozenges for facade patterns, structural frameworks, decorative elements, and optimizing geometric arrangements

💻 Computer Graphics & Gaming

Grid Systems & Visual Design

Developers apply lozenges for isometric game grids, diamond-shaped UI elements, tiling algorithms, and creating distinctive visual patterns

The Magic: Crystallography: Lattice structures and molecular modeling, Art: Decorative patterns and geometric design, Architecture: Structural elements and facade patterns, Graphics: Isometric grids and visual interfaces

🎯

Master the "Lozenge Analyst" Method!

Before working with complex lozenge problems, build systematic understanding of rhombus properties, diagonal relationships, and angular characteristics:

Key Insight: Lozenges are like geometry's "elegant diamonds" - they combine symmetry with distinctive angular character! Think of yourself as a lozenge analyst who can systematically analyze diamond-shaped relationships, apply fundamental measurements, and solve geometric problems using essential properties and formulas. Master lozenge calculations and symmetry principles, and you can solve any rhombus problem, optimize tessellation patterns, and handle real-world applications involving crystallographic structures and decorative designs!

💡 Why this matters:

🔋 Real-World Power:

Crystallography: Lattice analysis and molecular structures
Art: Pattern design and geometric compositions
Architecture: Structural frameworks and decorative elements
Graphics: Isometric systems and visual interfaces

🧠 Mathematical Insight:

Diamond geometry: Understanding rhombus properties with distinctive angles
Diagonal analysis: Essential tools for area calculations and symmetry
Angular relationships: Fundamental methods for geometric problem-solving
Mathematical precision: Exact representations of diamond-shaped structures

🚀 Study Strategy:

1 Master Definition and Basic Properties 📚

Lozenge definition: rhombus with acute and obtuse angles
Equal sides: all four sides have identical length
Angle relationships: opposite angles equal, adjacent supplementary
Diamond shape: distinctive acute/obtuse angle pairs

2 Learn Diagonal Properties and Area Formulas 🔍

Diagonal perpendicularity: diagonals intersect at right angles
Area calculation: A = (1/2)d₁d₂ using diagonal product
Alternative area: A = s²sinα using side and angle
Pythagorean relationship: d₁² + d₂² = 4s²

3 Apply Symmetry and Coordinate Methods 📊

Rotational symmetry: 2-fold symmetry with 180° rotations
Reflection symmetry: 2 lines along diagonals
Coordinate representations: standard and rotated positions
Dihedral group D₂: 4 total symmetry operations

4 Master Tessellation and Real-World Applications 🔗

Rhombic tessellations: parallelogram lattice arrangements
Crystallographic applications: rhombohedral crystal systems
Pattern design: decorative motifs and artistic compositions
Architectural elements: structural frameworks and facade patterns

When you master the "lozenge analyst" approach and understand lozenges as elegant diamonds with powerful geometric properties, you'll have the skills to solve any rhombus problem efficiently, apply diagonal and area formulas with confidence, analyze symmetry properties and coordinate representations systematically, and apply lozenge concepts to real-world problems in crystallography, art, architecture, and computer graphics applications!

Memory Trick: "Lozenge Analyst" - DEFINITION: rhombus with acute/obtuse angles, DIAGONALS: perpendicular and bisecting, AREA: diagonal product formula, APPLICATIONS: crystals and patterns

🔑 Key Properties of Lozenges in Geometry

🧮

Diamond Geometry

Understanding rhombus properties with distinctive angles

Fundamental shape combining equal sides with varied angles

🔄

Diagonal Analysis

Essential tools for area calculations and symmetry

Systematic methods using perpendicular diagonal properties

📐

Angular Relationships

Fundamental methods for geometric problem-solving

Essential for understanding supplementary and opposite angle pairs

🌊

Universal Applications

Fundamental shapes appearing across science and design

Essential for modeling crystallographic and decorative patterns

Universal Insight: Lozenges are geometry's perfect elegant diamonds - combining symmetry with distinctive angular character!

General Approach: Identify diagonal and angle relationships, apply area formulas, use symmetry properties, solve tessellation problems

Core Properties: Equal sides, perpendicular diagonals, supplementary adjacent angles, and 2-fold symmetry

Key Tools: Diagonal area formula, angle relationships, coordinate methods, and symmetry operations

Applications: Crystallography, art and design, architecture, computer graphics, and pattern analysis
