Circle Equation – Center-Radius and General Formulas

🔑

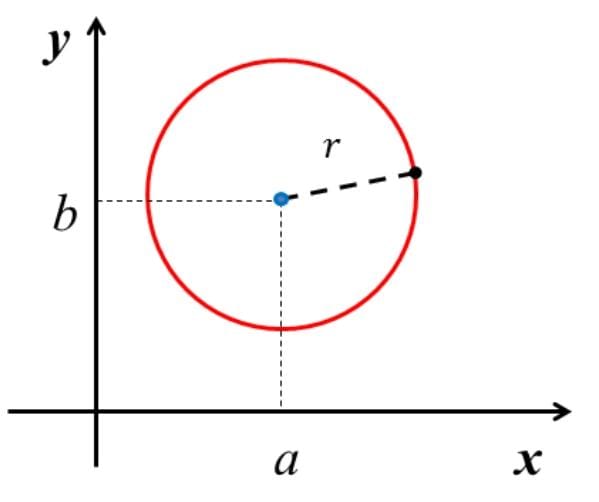

Key Formula - Standard Form

\[ (x - h)^2 + (y - k)^2 = r^2 \]

\[ \text{Circle centered at } (h, k) \text{ with radius } r \]

🎯 What does this mean?

A circle is the set of all points in a plane that are equidistant from a fixed point called the center. The constant distance from the center to any point on the circle is called the radius, making it the most perfectly symmetric curve in two dimensions.

📐

Different Forms of Circle Equations

Circles can be expressed in various mathematical forms:

\[ x^2 + y^2 = r^2 \quad \text{(Unit circle centered at origin)} \]

\[ x^2 + y^2 + Dx + Ey + F = 0 \quad \text{(General form)} \]

\[ \text{where center is } \left(-\frac{D}{2}, -\frac{E}{2}\right) \text{ and } r = \sqrt{\frac{D^2 + E^2 - 4F}{4}} \]

🔗

Parametric Equations

Alternative representation using parameter t:

\[ x = h + r\cos(t) \]

\[ y = k + r\sin(t) \]

\[ \text{where } t \in [0, 2\pi] \text{ traces the complete circle} \]

🔄

Circle Properties and Measurements

Essential measurements and properties:

\[ \text{Circumference: } C = 2\pi r \]

\[ \text{Area: } A = \pi r^2 \]

\[ \text{Diameter: } d = 2r \]

\[ \text{Distance from center to any point: } \sqrt{(x-h)^2 + (y-k)^2} = r \]

📊

Tangent Lines and Slopes

Tangent line properties at any point on the circle:

\[ \text{For circle } x^2 + y^2 = r^2 \text{ at point } (x_0, y_0): \]

\[ \text{Tangent line: } x_0 x + y_0 y = r^2 \]

\[ \text{Slope of tangent: } m = -\frac{x_0}{y_0} \quad (y_0 \neq 0) \]

\[ \text{Tangent is perpendicular to radius at point of contact} \]

📈

Circle Intersections and Chord Properties

Relationships involving chords, secants, and intersections:

\[ \text{Chord length: } c = 2r\sin\left(\frac{\theta}{2}\right) \]

\[ \text{where } \theta \text{ is the central angle subtended by the chord} \]

\[ \text{Distance from center to chord: } d = r\cos\left(\frac{\theta}{2}\right) \]

\[ \text{Arc length: } s = r\theta \quad (\theta \text{ in radians}) \]

🎯

Special Circle Relationships

Important geometric relationships and theorems:

\[ \text{Power of a point: } |PA| \cdot |PB| = |PC| \cdot |PD| \]

\[ \text{(for secants from external point P)} \]

\[ \text{Inscribed angle: } \angle ACB = \frac{1}{2} \angle AOB \]

\[ \text{(inscribed angle is half the central angle)} \]

🎯 Geometric Interpretation

A circle represents perfect symmetry and constant curvature. Every point on the circle is exactly the same distance from the center, making it the locus of points satisfying the distance condition. This simple yet profound property makes circles fundamental to geometry, physics, and engineering.

\[ (h, k) \]

Center coordinates - the fixed point equidistant from all points on the circle

\[ r \]

Radius - the constant distance from center to any point on the circle

\[ t \]

Parameter in parametric form - angle measured from positive x-axis (0 to 2π)

\[ D, E, F \]

Coefficients in general form - determine center and radius when expanded

\[ C \]

Circumference - the total distance around the circle (2πr)

\[ A \]

Area - the space enclosed by the circle (πr²)

\[ \theta \]

Central angle - angle subtended at center by an arc or chord

\[ \text{Tangent} \]

Line touching circle at exactly one point, perpendicular to radius at contact

\[ \text{Chord} \]

Line segment connecting two points on the circle

\[ \text{Secant} \]

Line intersecting the circle at two points

\[ \text{Arc} \]

Portion of the circle between two points, measured by central angle

\[ \pi \]

Mathematical constant ≈ 3.14159 - ratio of circumference to diameter

🎯 Essential Insight: A circle is the most symmetric shape possible - every point on it is exactly the same distance from the center, creating perfect rotational symmetry! 📊

🚀 Real-World Applications

🏗️ Engineering & Architecture

Wheels, Gears, and Structural Design

Circular shapes provide optimal strength distribution and rotational efficiency in mechanical systems and architectural elements like arches and domes

🌍 Navigation & GPS

Distance Calculations and Positioning

GPS systems use circles of constant distance from satellites to triangulate precise locations on Earth's surface

🔬 Physics & Astronomy

Orbital Motion and Wave Patterns

Planetary orbits, circular motion in physics, and wave propagation all utilize circular geometry for modeling and calculations

🎨 Computer Graphics & Design

Animation and Visual Effects

Circular paths, rotational transformations, and curve generation in computer graphics rely on parametric circle equations

The Magic: Engineering: Perfect rotational symmetry in wheels and gears, Navigation: Distance-based positioning systems, Physics: Orbital mechanics and circular motion, Graphics: Smooth curved animations and designs

🎯

Master the "Constant Distance" Mindset!

Before memorizing equations, develop this core intuition about circles:

Key Insight: A circle is simply all points that are exactly the same distance from a center point - imagine a dog on a leash running around a stake, the path it traces is always the same distance (the leash length) from the stake!

💡 Why this matters:

🔋 Real-World Power:

Engineering: Wheels and gears use circular geometry for efficient rotational motion
Navigation: GPS and radar systems use circular distance measurements for positioning
Physics: Circular orbits and rotational motion follow circular mathematical principles
Design: Circular shapes provide aesthetic appeal and structural strength

🧠 Mathematical Insight:

Circles represent the distance formula in action: √[(x-h)² + (y-k)²] = r
Parametric form reveals how trigonometry creates circular motion
Tangent lines are always perpendicular to radii at the point of contact

🚀 Study Strategy:

1 Understand the Definition 📐

Start with: "All points exactly distance r from center (h,k)"
Picture: Draw circles with compass - radius stays constant
Key insight: "How far is this point from the center?"

2 Master the Equation Forms 📋

Standard: (x-h)² + (y-k)² = r² - shows center and radius clearly
General: x² + y² + Dx + Ey + F = 0 - complete the square to find center
Parametric: x = h + r cos(t), y = k + r sin(t) - shows circular motion

3 Explore Geometric Properties 🔗

Tangent lines: Always perpendicular to radius at contact point
Chords and arcs: Relate central angles to arc lengths and chord lengths
Area and circumference: πr² and 2πr connect radius to measurements

4 Connect to Applications 🎯

Mechanical: Wheels, gears, and rotating machinery
Navigation: Distance-based positioning and radar systems
Physics: Circular motion, orbits, and wave propagation

When you see circles as "constant distance from a center," analytic geometry becomes a powerful tool for understanding rotational systems, navigation technology, and the fundamental symmetries that appear throughout mathematics and nature!

Memory Trick: "Constant Radius Creates Perfect Loops" - CENTER: Fixed reference point, RADIUS: Constant distance, SYMMETRY: Perfect rotational balance

🔑 Key Properties of Circles

📐

Perfect Symmetry

Infinite lines of symmetry passing through the center

Rotational symmetry about the center for any angle

📈

Constant Curvature

Every point on the circle has the same curvature (1/r)

Uniform rate of direction change around the entire circumference

🔗

Tangent-Radius Relationship

Tangent lines are always perpendicular to radii at the point of contact

From any external point, two tangent lines can be drawn to the circle

🎯

Optimization Properties

Maximum area for a given perimeter among all closed curves

Minimum perimeter for a given enclosed area

Universal Insight: Circles represent the most efficient and symmetric shape in two dimensions - they optimize area-to-perimeter ratios and provide perfect rotational balance!

Standard Form: (x-h)² + (y-k)² = r² clearly shows center (h,k) and radius r

Parametric Form: x = h + r cos(t), y = k + r sin(t) reveals circular motion

Key Measurements: Area = πr², Circumference = 2πr, both depend on radius

Applications: Engineering wheels, navigation systems, physics orbits, and computer graphics
