Parallelogram Geometry Formulas – Area, Base, Height

🔑

Key Definition - Parallelogram and Its Components

\[ \text{Parallelogram: quadrilateral with opposite sides parallel} \]

\[ \text{Parallel sides: } AB \parallel DC, \text{ } AD \parallel BC \]

\[ \text{Opposite sides equal: } |AB| = |DC|, \text{ } |AD| = |BC| \]

\[ \text{Opposite angles equal: } \angle A = \angle C, \text{ } \angle B = \angle D \]

🎯 What does this mean?

Parallelograms represent the fundamental quadrilaterals with opposite sides parallel and equal, providing essential frameworks for understanding vector geometry, coordinate transformations, and geometric properties in linear algebra and spatial analysis. These versatile shapes extend far beyond simple geometric constructions to encompass affine geometry, vector spaces, physics applications, and sophisticated mathematical modeling that enables advanced spatial reasoning, coordinate geometry, and engineering design. Parallelograms provide essential tools for analyzing geometric transformations, calculating areas using cross products, understanding parallel line relationships, and solving practical problems while maintaining mathematical precision and enabling complex geometric reasoning. Understanding parallelograms is crucial for vector geometry, linear algebra, physics, and applied mathematics where parallel relationships require systematic analysis, coordinate methods, and practical applications, making them indispensable for solving transformation problems, modeling physical systems, analyzing geometric mappings, and designing parallel structures across diverse mathematical, scientific, and engineering contexts.

📊

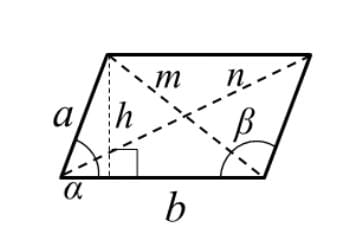

Key Formulas for a Parallelogram

Essential measurements and calculations for parallelograms:

1. Perimeter P:

Total length around the parallelogram:

\[ P = 2(a + b) \]

where:

a: Length of one pair of opposite sides (base)
b: Length of the other pair of opposite sides (side)

2. Sum of Adjacent Angles:

The sum of adjacent interior angles is always supplementary:

\[ \alpha + \beta = 180° \]

where:

α: One interior angle
β: Adjacent angle to α

3. Height Using Trigonometry h:

Height can be calculated using sine of an angle and adjacent side:

\[ h = a \sin(\alpha) = a \sin(\beta) \]

where:

a: Side adjacent to angle α
α, β: Angles at the base

4. Diagonals Relation:

Relationship between the diagonals m and n:

\[ m^2 + n^2 = 2(a^2 + b^2) \]

where:

m, n: Lengths of the diagonals
a, b: Sides of the parallelogram

5. Area A:

The space enclosed by the parallelogram:

\[ A = b \times h = a \times b \sin(\alpha) \]

where:

b: Base
h: Height (perpendicular to base)
a, α: Side and included angle

📐

Fundamental Measurements - Area and Perimeter

Essential measurements and properties of parallelograms:

\[ \text{Area using base and height: } A = b \times h \]

\[ \text{Area using sides and angle: } A = ab\sin\theta \]

\[ \text{Perimeter: } P = 2(a + b) \]

\[ \text{Area using vectors: } A = |\vec{u} \times \vec{v}| \]

🌊

Diagonal Properties - Bisection and Relationships

Special properties of parallelogram diagonals:

\[ \text{Diagonals bisect each other at midpoint} \]

\[ \text{Diagonal lengths: } d_1^2 + d_2^2 = 2(a^2 + b^2) \text{ (parallelogram law)} \]

\[ \text{Midpoint: } M = \frac{A + C}{2} = \frac{B + D}{2} \]

\[ \text{Diagonal vectors: } \vec{d_1} = \vec{a} + \vec{b}, \vec{d_2} = \vec{a} - \vec{b} \]

🔄

Angle Relationships - Supplementary Properties

Angular properties and relationships in parallelograms:

\[ \text{Opposite angles equal: } \alpha = \gamma, \beta = \delta \]

\[ \text{Adjacent angles supplementary: } \alpha + \beta = 180° \]

\[ \text{Sum of all angles: } \alpha + \beta + \gamma + \delta = 360° \]

\[ \text{Acute and obtuse pairs: } \alpha, \gamma < 90° \text{ or } \alpha, \gamma > 90° \]

📊

Vector Representation - Coordinate Geometry

Working with parallelograms using vectors and coordinates:

\[ \text{Vector form: } \vec{AB} = \vec{DC}, \vec{AD} = \vec{BC} \]

\[ \text{Position vectors: } C = A + \vec{AB} + \vec{AD} \]

\[ \text{Area determinant: } A = \begin{vmatrix} x_1 & y_1 \\ x_2 & y_2 \end{vmatrix} \]

\[ \text{Coordinate vertices: } A(x_1,y_1), B(x_2,y_2), C(x_3,y_3), D(x_4,y_4) \]

📈

Special Types - Rectangle, Rhombus, Square

Special cases and variations of parallelograms:

\[ \text{Rectangle: } \alpha = \beta = \gamma = \delta = 90° \]

\[ \text{Rhombus: } a = b \text{ (all sides equal)} \]

\[ \text{Square: rectangle and rhombus } (\alpha = 90°, a = b) \]

\[ \text{General parallelogram: } \alpha \neq 90°, a \neq b \]

🎯

Transformations and Mappings - Geometric Operations

Transformations involving parallelograms:

\[ \text{Translation: preserves parallelogram properties} \]

\[ \text{Rotation: maintains area and side relationships} \]

\[ \text{Scaling: } A_{new} = k^2 A, P_{new} = kP \]

\[ \text{Shear transformation: parallelogram to parallelogram} \]

⚠️

Common Mistakes and Key Points

Critical considerations for parallelogram calculations:

\[ \text{Height } \neq \text{ side length (perpendicular distance)} \]

\[ \text{Diagonals not necessarily equal (unless rectangle)} \]

\[ \text{Area } = base \times height, \text{ not } base \times side \]

\[ \text{All rectangles are parallelograms, not vice versa} \]

🎯 Geometric Interpretation

Parallelograms represent the fundamental quadrilaterals characterized by opposite sides being parallel and equal, providing essential frameworks for understanding vector geometry, coordinate transformations, and linear algebraic concepts while maintaining mathematical precision and enabling sophisticated spatial analysis. These versatile shapes extend beyond basic measurements to become essential tools for vector spaces, affine geometry, physics applications, and mathematical modeling where parallel relationships require precise analytical treatment. The unique properties of parallelograms enable systematic methods for area calculations using cross products, coordinate representations, transformation analysis, and vector operations while maintaining geometric rigor and providing powerful problem-solving techniques. Understanding parallelograms as both geometric objects and algebraic frameworks reveals their essential role in mathematics, physics, and engineering where parallel structures, vector operations, and coordinate transformations require precise mathematical treatment, computational efficiency, and practical applications across diverse mathematical and scientific contexts.

\[ A = b \times h \]

Area - base times perpendicular height

\[ A = ab\sin\theta \]

Area - sides and included angle

\[ P = 2(a + b) \]

Perimeter - sum of all four sides

\[ AB \parallel DC, AD \parallel BC \]

Parallel sides - defining property

\[ \text{Opposite sides equal} \]

Side equality - consequence of parallelism

\[ \text{Opposite angles equal} \]

Angle equality - geometric property

\[ \text{Adjacent angles supplementary} \]

Angle sum - consecutive angles total 180°

\[ \text{Diagonals bisect each other} \]

Diagonal property - intersect at midpoints

\[ d_1^2 + d_2^2 = 2(a^2 + b^2) \]

Parallelogram law - diagonal length relationship

\[ A = |\vec{u} \times \vec{v}| \]

Vector area - cross product magnitude

\[ \text{Special cases: rectangle, rhombus, square} \]

Variations - specialized parallelogram types

\[ \text{Affine transformations} \]

Mappings - parallelogram to parallelogram

🎯 Essential Insight: Parallelograms are like geometry's "vector foundations" - they embody parallel relationships and coordinate transformations! ⬛

🚀 Real-World Applications

🔧 Engineering & Mechanics

Force Analysis & Structural Design

Engineers use parallelograms for force vector analysis, truss design, mechanical linkages, and understanding parallel motion systems

💻 Computer Graphics & Animation

Coordinate Transformations & Rendering

Developers apply parallelograms for affine transformations, texture mapping, perspective corrections, and 2D/3D coordinate systems

🏗️ Architecture & Construction

Structural Frameworks & Design Elements

Architects use parallelograms for building frameworks, facade patterns, structural analysis, and geometric design elements

📊 Physics & Mathematics

Vector Operations & Linear Algebra

Physicists apply parallelograms for vector addition, force composition, coordinate geometry, and understanding linear transformations

The Magic: Engineering: Force analysis and mechanical systems, Graphics: Transformations and coordinate mapping, Architecture: Structural frameworks and geometric design, Physics: Vector operations and mathematical modeling

🎯

Master the "Parallelogram Navigator" Method!

Before working with complex parallelogram problems, build systematic understanding of parallel relationships, vector properties, and coordinate transformations:

Key Insight: Parallelograms are like geometry's "vector foundations" - they embody parallel relationships and coordinate transformations! Think of yourself as a parallelogram navigator who can systematically analyze parallel-sided relationships, apply fundamental measurements, and solve geometric problems using essential properties and formulas. Master parallelogram calculations and vector principles, and you can solve any quadrilateral problem, optimize coordinate transformations, and handle real-world applications involving force analysis and structural design!

💡 Why this matters:

🔋 Real-World Power:

Engineering: Force analysis and mechanical system design
Graphics: Coordinate transformations and computer rendering
Architecture: Structural frameworks and geometric patterns
Physics: Vector operations and mathematical modeling

🧠 Mathematical Insight:

Vector foundations: Understanding parallel relationships and coordinate geometry
Analytical power: Essential tools for area calculations and transformations
Geometric relationships: Fundamental methods for angle and side analysis
Mathematical precision: Exact representations of parallel-sided structures

🚀 Study Strategy:

1 Master Definition and Basic Properties 📚

Parallelogram definition: opposite sides parallel and equal
Fundamental properties: angle and side relationships
Parallel line properties: corresponding and alternate angles
Quadrilateral classification: parallelogram family hierarchy

2 Learn Area and Measurement Formulas 🔍

Area calculations: base × height and side × side × sin(angle)
Perimeter formula: 2(a + b) for opposite side pairs
Height distinction: perpendicular distance vs side length
Vector area method: cross product magnitude

3 Apply Vector and Coordinate Methods 📊

Vector representation: opposite sides as equal vectors
Coordinate geometry: vertex relationships and midpoints
Diagonal properties: bisection and parallelogram law
Transformation analysis: translation, rotation, scaling

4 Master Special Cases and Applications 🔗

Special parallelograms: rectangle, rhombus, square
Engineering applications: force analysis and structural design
Computer graphics: affine transformations and coordinate mapping
Physics modeling: vector addition and linear algebra

When you master the "parallelogram navigator" approach and understand parallelograms as vector foundations with powerful geometric properties, you'll have the skills to solve any parallel-sided quadrilateral problem efficiently, apply area and transformation formulas with confidence, analyze vector relationships and coordinate representations systematically, and apply parallelogram concepts to real-world problems in engineering, computer graphics, architecture, and physics applications!

Memory Trick: "Parallelogram Navigator" - DEFINITION: opposite sides parallel and equal, MEASUREMENTS: area/perimeter/diagonal formulas, VECTORS: coordinate and transformation methods, APPLICATIONS: force analysis and graphics

🔑 Key Properties of Parallelograms in Geometry

🧮

Vector Foundations

Understanding parallel relationships and coordinate geometry

Fundamental shape connecting vector operations with geometric properties

🔄

Analytical Power

Essential tools for area calculations and transformations

Systematic methods enabling sophisticated geometric analysis

📐

Geometric Relationships

Fundamental methods for angle and side analysis

Essential for understanding parallel line properties and transformations

🌊

Universal Applications

Fundamental shapes appearing across engineering and science

Essential for modeling force systems and coordinate transformations

Universal Insight: Parallelograms are geometry's perfect vector foundations - embodying parallel relationships and coordinate transformations!

General Approach: Identify parallel relationships, apply area/perimeter formulas, use vector methods, solve transformation problems

Core Properties: Parallel opposite sides, equal opposite angles, diagonal bisection, and supplementary adjacent angles

Key Tools: Area formulas, vector operations, coordinate geometry, and transformation analysis

Applications: Engineering, computer graphics, architecture, physics, and mathematical modeling
