Point Geometry – Cartesian Coordinates and Properties

🔑

Key Formula - Point Representation

\[ P(x, y) \]

\[ \text{where } x \text{ is the x-coordinate and } y \text{ is the y-coordinate} \]

🎯 What does this mean?

A point in coordinate geometry represents an exact location in two-dimensional space using ordered pairs of numbers. It has no size, area, or dimension - just position. Points serve as the fundamental building blocks for all geometric shapes and are essential for describing locations, plotting graphs, and solving geometric problems.

📐

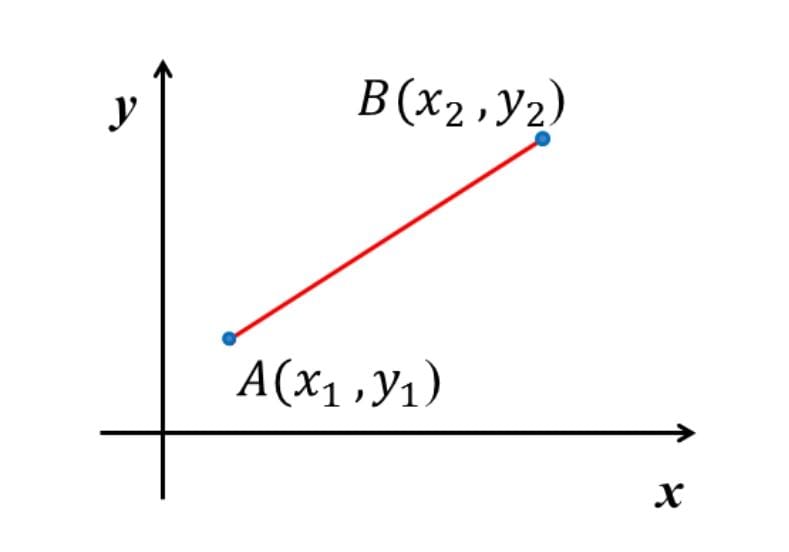

Distance Between Two Points

The most fundamental measurement in coordinate geometry:

\[ d = \sqrt{(x_2 - x_1)^2 + (y_2 - y_1)^2} \]

\[ \text{Distance between points } A(x_1, y_1) \text{ and } B(x_2, y_2) \]

\[ \text{Derived from the Pythagorean theorem} \]

📍

Distance From Origin to a Point

Special case when one point is at the origin:

\[ d = \sqrt{x^2 + y^2} \]

\[ \text{Distance from origin (0,0) to point } (x, y) \]

\[ \text{Simplified form of general distance formula} \]

🔗

Midpoint Formula

Finding the center point between two given points:

\[ M = \left(\frac{x_1 + x_2}{2}, \frac{y_1 + y_2}{2}\right) \]

\[ \text{Midpoint of line segment connecting } P_1(x_1, y_1) \text{ and } P_2(x_2, y_2) \]

\[ \text{Average of corresponding coordinates} \]

🔄

Section Formula

Finding points that divide line segments in given ratios:

\[ P = \left(\frac{mx_2 + nx_1}{m + n}, \frac{my_2 + ny_1}{m + n}\right) \]

\[ \text{Point } P \text{ divides segment } P_1P_2 \text{ internally in ratio } m:n \]

\[ \text{External division: } P = \left(\frac{mx_2 - nx_1}{m - n}, \frac{my_2 - ny_1}{m - n}\right) \]

📊

Area of Triangle Using Points

Calculating area when triangle vertices are known:

\[ \text{Area} = \frac{1}{2}|x_1(y_2 - y_3) + x_2(y_3 - y_1) + x_3(y_1 - y_2)| \]

\[ \text{For triangle with vertices } A(x_1, y_1), B(x_2, y_2), C(x_3, y_3) \]

\[ \text{If area = 0, the three points are collinear} \]

📈

Slope Between Two Points

Measuring steepness of line connecting two points:

\[ m = \frac{y_2 - y_1}{x_2 - x_1} \]

\[ \text{Slope of line through } P_1(x_1, y_1) \text{ and } P_2(x_2, y_2) \]

\[ \text{Undefined when } x_2 = x_1 \text{ (vertical line)} \]

\[ \text{Zero when } y_2 = y_1 \text{ (horizontal line)} \]

🎯

Special Point Relationships

Important geometric relationships involving points:

\[ \text{Collinear points: Area of triangle = 0} \]

\[ \text{Right angle: } m_1 \cdot m_2 = -1 \text{ (perpendicular slopes)} \]

\[ \text{Parallel lines: } m_1 = m_2 \text{ (equal slopes)} \]

\[ \text{Reflection across x-axis: } (x, y) \rightarrow (x, -y) \]

\[ \text{Reflection across y-axis: } (x, y) \rightarrow (-x, y) \]

🎯 Geometric Interpretation

Points in coordinate geometry represent exact positions in a two-dimensional plane using the Cartesian coordinate system. Each point is uniquely determined by its ordered pair (x, y), where x represents horizontal displacement from the origin and y represents vertical displacement. Points serve as the foundation for all geometric constructions and measurements in the coordinate plane.

\[ (x, y) \]

Ordered pair representing point coordinates - x is horizontal, y is vertical position

\[ x_1, y_1 \]

Coordinates of first point in calculations involving two or more points

\[ x_2, y_2 \]

Coordinates of second point in distance, midpoint, and slope calculations

\[ d \]

Distance between two points - always positive value representing separation

\[ M \]

Midpoint - the point exactly halfway between two given points

\[ m \]

Slope - measures steepness and direction of line connecting two points

\[ m, n \]

Ratio values in section formula - determine how line segment is divided

\[ \text{Origin} \]

Point (0, 0) where x and y axes intersect - reference point for coordinate system

\[ \text{Quadrants} \]

Four regions of coordinate plane - I: (+,+), II: (-,+), III: (-,-), IV: (+,-)

\[ \text{Collinear} \]

Points lying on the same straight line - triangle area equals zero

\[ \text{Vertices} \]

Corner points of geometric shapes like triangles and polygons

🎯 Essential Insight: Points are like mathematical addresses - they tell you exactly where something is located in the coordinate plane using two numbers! 📊

🚀 Real-World Applications

🗺️ Geography & Navigation

GPS Coordinates & Mapping

GPS systems use coordinate points (latitude and longitude) to pinpoint exact locations on Earth, enabling precise navigation, mapping, and location-based services

🎮 Computer Graphics & Gaming

Pixel Positioning & Animation

Every pixel on computer screens and game objects are positioned using coordinate points, enabling precise graphics rendering, animation, and user interface design

🏗️ Architecture & Engineering

Blueprint Design & Construction

Architects and engineers use coordinate points to specify exact locations of structural elements, ensuring precise construction and accurate building plans

📊 Data Analysis & Statistics

Data Visualization & Plotting

Statistical data is plotted using coordinate points to create graphs, charts, and visualizations that reveal patterns, trends, and relationships in data sets

The Magic: Geography: Precise location identification and navigation, Graphics: Pixel positioning and digital design, Architecture: Exact structural placement and blueprints, Statistics: Data visualization and trend analysis

🎯

Master the "Mathematical Address" Mindset!

Before memorizing formulas, develop this core intuition about coordinate points:

Key Insight: A coordinate point is like a mathematical address that tells you exactly where something is located - just like a street address tells you where a house is, coordinates (x,y) tell you exactly where a point is on the coordinate plane!

💡 Why this matters:

🔋 Real-World Power:

Navigation: GPS coordinates pinpoint exact locations anywhere on Earth
Technology: Every pixel on screens and digital devices has coordinate positions
Engineering: Precise positioning is essential for construction and manufacturing
Science: Data plotting and visualization depend on coordinate point systems

🧠 Mathematical Insight:

Points have position but no size - they're purely locational
Distance formula comes from Pythagorean theorem in coordinate form
All geometric shapes are built from collections of points

🚀 Study Strategy:

1 Understand Coordinate Representation 📐

Start with: (x,y) as ordered pair - x first (horizontal), y second (vertical)
Picture: Graph paper with x-axis left-right, y-axis up-down
Key insight: "How do I locate this exact position?"

2 Master Distance and Midpoint 📋

Distance: √[(x₂-x₁)² + (y₂-y₁)²] from Pythagorean theorem
Midpoint: Average the coordinates - ((x₁+x₂)/2, (y₁+y₂)/2)
Practice with simple examples before complex problems

3 Explore Geometric Relationships 🔗

Slope: (y₂-y₁)/(x₂-x₁) measures line steepness between points
Collinear points: Triangle area = 0 when three points align
Special relationships: parallel (equal slopes), perpendicular (negative reciprocal slopes)

4 Connect to Applications 🎯

Navigation: GPS coordinates for precise location finding
Graphics: Pixel positioning in digital images and games
Engineering: Exact measurements for construction and design

When you see coordinate points as "mathematical addresses," coordinate geometry becomes a powerful tool for navigation, digital design, engineering precision, and countless applications where exact positioning is essential!

Memory Trick: "Points Provide Precise Locations" - POSITION: Exact location in plane, ORDERED PAIR: (x,y) with specific sequence, FOUNDATION: Building blocks for all geometry

🔑 Key Properties of Coordinate Points

📐

Exact Position

Each point has unique coordinates that specify its exact location

No two different points can have identical coordinate pairs

📈

Zero Dimension

Points have position but no size, area, or physical dimension

Serve as building blocks for lines, shapes, and geometric figures

🔗

Ordered Pair Representation

Always written as (x, y) with horizontal coordinate first

Order matters - (3, 5) is different from (5, 3)

🎯

Distance Relationships

Distance between any two points follows Pythagorean theorem

Enable precise measurements and geometric calculations

Universal Insight: Points are the fundamental units of position in coordinate geometry - they provide the precise location system that makes all geometric measurements and constructions possible!

Basic Representation: (x, y) with x-coordinate first, y-coordinate second

Distance Formula: √[(x₂-x₁)² + (y₂-y₁)²] from Pythagorean theorem

Midpoint Formula: ((x₁+x₂)/2, (y₁+y₂)/2) - average of coordinates

Applications: GPS navigation, computer graphics, architectural design, and data visualization
