Elliptic Cylinder Equation – Z-Axis as Axis

🔑

Key Formula - Standard Form

\[ \frac{x^2}{a^2} + \frac{y^2}{b^2} = 1 \]

\[ \text{With z as the free parameter (extends infinitely)} \]

🎯 What does this mean?

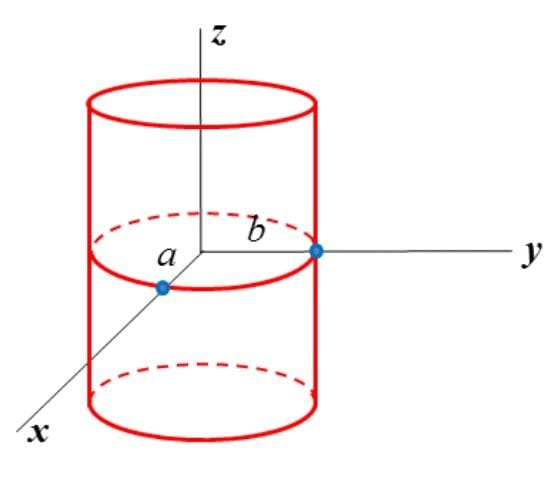

An elliptic cylinder is a three-dimensional surface formed by moving an ellipse parallel to itself along a straight line. It has constant elliptical cross-sections perpendicular to its axis and extends infinitely in the axial direction.

📐

Different Orientations

Elliptic cylinders can be oriented along different coordinate axes:

\[ \frac{x^2}{a^2} + \frac{y^2}{b^2} = 1 \quad \text{(Axis parallel to z-axis)} \]

\[ \frac{x^2}{a^2} + \frac{z^2}{c^2} = 1 \quad \text{(Axis parallel to y-axis)} \]

\[ \frac{y^2}{b^2} + \frac{z^2}{c^2} = 1 \quad \text{(Axis parallel to x-axis)} \]

🔗

Translated Elliptic Cylinder

General form with center at point (h, k):

\[ \frac{(x-h)^2}{a^2} + \frac{(y-k)^2}{b^2} = 1 \]

\[ \text{Center axis: } x = h, y = k \]

\[ \text{Extends infinitely in z-direction} \]

🔄

Cross-Sections and Traces

Understanding the cylinder through its cross-sections:

\[ \text{At any } z = k: \frac{x^2}{a^2} + \frac{y^2}{b^2} = 1 \quad \text{(Same ellipse)} \]

\[ \text{At } y = 0: x^2 = a^2 \Rightarrow x = \pm a \quad \text{(Two parallel lines)} \]

\[ \text{At } x = 0: y^2 = b^2 \Rightarrow y = \pm b \quad \text{(Two parallel lines)} \]

📊

Parametric Equations

Alternative representation using parameters:

\[ x = a \cos(\theta) \]

\[ y = b \sin(\theta) \]

\[ z = t \]

\[ \text{Where: } \theta \in [0, 2\pi], t \in (-\infty, \infty) \]

📈

Surface Area and Volume

Measurements for finite cylindrical sections:

\[ \text{Surface Area (height h): } S = 2\pi ab + h \cdot \text{Perimeter} \]

\[ \text{Ellipse Perimeter: } P \approx \pi[3(a+b) - \sqrt{(3a+b)(a+3b)}] \]

\[ \text{Volume (height h): } V = \pi ab h \]

\[ \text{Cross-sectional Area: } A = \pi ab \]

🎯

Special Cases

Important special forms of elliptic cylinders:

\[ \text{Circular Cylinder: } a = b = r \Rightarrow x^2 + y^2 = r^2 \]

\[ \text{Highly Eccentric: } a \gg b \text{ or } b \gg a \text{ (nearly flat)} \]

\[ \text{Unit Cylinder: } a = b = 1 \Rightarrow x^2 + y^2 = 1 \]

🎯 Geometric Interpretation

An elliptic cylinder is formed by translating an ellipse parallel to itself along a straight line. Every cross-section perpendicular to the cylinder axis is identical to the generating ellipse, making it a prismatic surface with elliptical cross-sections.

\[ a \]

Semi-major or semi-minor axis in x-direction - controls width of elliptical cross-section

\[ b \]

Semi-major or semi-minor axis in y-direction - controls height of elliptical cross-section

\[ (h, k) \]

Center coordinates of the elliptical cross-section in the xy-plane

\[ \theta \]

Angular parameter for parametric form - ranges from 0 to 2π around the ellipse

\[ t \]

Linear parameter along cylinder axis - ranges over all real numbers

\[ z \]

Free variable - cylinder extends infinitely in this direction

\[ \text{Axis} \]

Line parallel to which the generating ellipse is translated

\[ \text{Directrix} \]

The generating ellipse that defines the cylindrical surface

\[ \text{Generators} \]

Straight lines parallel to the axis lying on the cylinder surface

\[ \text{Eccentricity} \]

Measure of ellipse deviation from circular: e = √(1 - b²/a²) when a > b

\[ \text{Cross-section} \]

Identical ellipses obtained by cutting the cylinder perpendicular to its axis

\[ \text{Surface Area} \]

For finite height h: lateral surface plus two elliptical end caps

🎯 Essential Insight: An elliptic cylinder is like stretching an ellipse infinitely in one direction - it maintains the same elliptical shape at every level! 📊

🚀 Real-World Applications

🏗️ Engineering & Manufacturing

Pipes, Tubes, and Structural Elements

Elliptical pipes offer better flow characteristics and structural strength for specific applications like HVAC systems and bridge supports

🚗 Automotive & Aerospace

Exhaust Systems & Fuel Tanks

Elliptical cross-sections provide optimal space utilization and aerodynamic properties in vehicle design and aircraft fuel systems

🏛️ Architecture & Design

Columns and Decorative Elements

Elliptical columns and architectural features create visually appealing structures with unique aesthetic and structural properties

🔬 Physics & Optics

Waveguides and Optical Systems

Elliptical waveguides in telecommunications and elliptical reflectors in optical instruments utilize cylindrical geometry for signal propagation

The Magic: Engineering: Optimal fluid flow in elliptical pipes, Automotive: Space-efficient fuel tanks, Architecture: Elegant structural columns, Optics: Specialized waveguides and reflectors

🎯

Master the "Consistent Cross-Section" Mindset!

Before memorizing equations, develop this core intuition about elliptic cylinders:

Key Insight: An elliptic cylinder is like taking an ellipse and extending it infinitely in one direction - imagine an elliptical cookie cutter that creates the same oval shape no matter how thick you make the dough!

💡 Why this matters:

🔋 Real-World Power:

Engineering: Elliptical pipes and ducts optimize flow and space utilization
Architecture: Elliptical columns provide unique aesthetic and structural properties
Manufacturing: Cylindrical parts with elliptical cross-sections for specialized applications
Physics: Waveguides and optical systems utilize elliptical geometries

🧠 Mathematical Insight:

Cylinders are surfaces of translation - one curve moved parallel to itself
Cross-sections perpendicular to axis are always identical ellipses
Parametric form reveals the cylindrical structure clearly

🚀 Study Strategy:

1 Visualize the Basic Shape 📐

Start with equation: x²/a² + y²/b² = 1 (z is free)
Picture: Ellipse in xy-plane extended infinitely along z-axis
Key insight: "Same elliptical slice at every height"

2 Understand Cross-Sections 📋

Perpendicular to axis (z = constant): Identical ellipses with semi-axes a and b
Parallel to axis through center: Rectangles with width 2a or 2b
Parallel to axis off-center: Various shapes depending on cutting plane

3 Master Parametric Form 🔗

x = a cos(θ), y = b sin(θ), z = t
θ controls position around ellipse, t controls height along axis
Shows cylinder as swept surface: ellipse moved along straight line

4 Connect to Applications 🎯

Engineering: Elliptical ducts for optimal air flow in confined spaces
Architecture: Elliptical columns for aesthetic and structural diversity
Manufacturing: Specialized containers and structural components

When you see elliptic cylinders as "consistent elliptical slices," analytic geometry becomes a powerful tool for understanding how 2D shapes extend into 3D space for practical engineering and design applications!

Memory Trick: "Ellipses Live Lengthwise In Perpetual Straight Extensions" - CONSISTENT: Same shape at every level, INFINITE: Extends forever along axis, ELLIPTICAL: Cross-sections are ellipses

🔑 Key Properties of Elliptic Cylinders

📐

Prismatic Surface

Formed by translating an ellipse parallel to itself along a straight line

All cross-sections perpendicular to the axis are congruent ellipses

📈

Ruled Surface

Contains infinitely many straight lines (generators) parallel to the axis

Every point on the surface lies on exactly one generator line

🔗

Translational Invariance

Shape remains unchanged when moved parallel to the cylinder axis

Cross-sectional properties are constant along the entire length

🎯

Quadric Surface

Defined by a second-degree equation in three variables

Special case where one variable appears linearly or is absent

Universal Insight: Elliptic cylinders show how 2D shapes can generate 3D surfaces through translation - they maintain consistent cross-sections while extending infinitely!

Standard Form: x²/a² + y²/b² = 1 with z as free parameter defines the basic elliptic cylinder

Cross-Sections: Perpendicular cuts give identical ellipses, parallel cuts give rectangles or other shapes

Parametric Form: Shows cylinder as ellipse swept along a straight line

Applications: Engineering pipes, architectural columns, aerospace components, and optical systems
