Hyperboloid (Two Sheets) – Equation in 3D Space

🔑

Key Formula - Standard Form

\[ -\frac{x^2}{a^2} - \frac{y^2}{b^2} + \frac{z^2}{c^2} = 1 \]

\[ \text{Alternative form: } \frac{z^2}{c^2} - \frac{x^2}{a^2} - \frac{y^2}{b^2} = 1 \]

🎯 What does this mean?

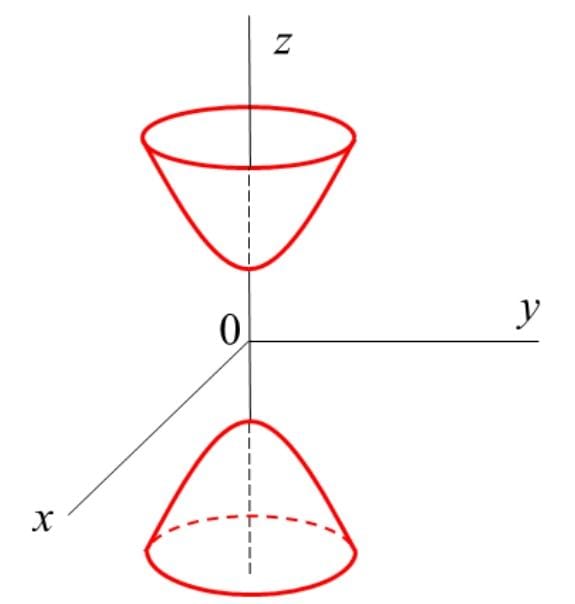

A hyperboloid of two sheets is a three-dimensional surface consisting of two separate, bowl-shaped pieces that face each other across a gap. Each sheet curves outward like a bowl, and the two sheets are symmetric about the origin but never connected, creating a distinctive "split" appearance.

📐

Different Orientations

Hyperboloids can be oriented along different axes:

\[ \frac{z^2}{c^2} - \frac{x^2}{a^2} - \frac{y^2}{b^2} = 1 \quad \text{(Opening along z-axis)} \]

\[ \frac{y^2}{b^2} - \frac{x^2}{a^2} - \frac{z^2}{c^2} = 1 \quad \text{(Opening along y-axis)} \]

\[ \frac{x^2}{a^2} - \frac{y^2}{b^2} - \frac{z^2}{c^2} = 1 \quad \text{(Opening along x-axis)} \]

🔗

Translated Hyperboloid

General form with center at point (h, k, l):

\[ \frac{(z-l)^2}{c^2} - \frac{(x-h)^2}{a^2} - \frac{(y-k)^2}{b^2} = 1 \]

\[ \text{Center: } (h, k, l) \]

\[ \text{Gap centered at } z = l \]

🔄

Cross-Sections and Traces

Understanding the surface through its cross-sections:

\[ \text{At } |z| < c: \text{ No real points (gap region)} \]

\[ \text{At } z = \pm c: \text{ Single points } (0, 0, \pm c) \text{ (vertices)} \]

\[ \text{At } |z| > c: \frac{x^2}{a^2} + \frac{y^2}{b^2} = \frac{z^2}{c^2} - 1 \quad \text{(Ellipse)} \]

\[ \text{At } y = 0: \frac{z^2}{c^2} - \frac{x^2}{a^2} = 1 \quad \text{(Hyperbola)} \]

📊

Parametric Equations

Alternative representation using parameters:

\[ x = a \sinh(u) \cos(v) \]

\[ y = b \sinh(u) \sin(v) \]

\[ z = \pm c \cosh(u) \]

\[ \text{Where: } u \geq 0, v \in [0, 2\pi], \pm \text{ gives two sheets} \]

📈

Vertices and Gap Properties

Important characteristics of the two-sheet structure:

\[ \text{Vertices: } (0, 0, c) \text{ and } (0, 0, -c) \]

\[ \text{Gap region: } |z| < c \text{ (no surface exists)} \]

\[ \text{Minimum separation: } 2c \text{ (between vertices)} \]

\[ \text{Each sheet extends to infinity in its direction} \]

🎯

Asymptotic Cone and Behavior

Limiting behavior as surface extends to infinity:

\[ \text{Asymptotic cone: } \frac{z^2}{c^2} - \frac{x^2}{a^2} - \frac{y^2}{b^2} = 0 \]

\[ \text{Same asymptotic cone as hyperboloid of one sheet} \]

\[ \text{Each sheet approaches cone as } |z| \to \infty \]

\[ \text{Cone equations: } z = \pm\frac{c}{\sqrt{a^2 + b^2}}\sqrt{x^2 + y^2} \text{ (when } a = b\text{)} \]

🎯 Geometric Interpretation

A hyperboloid of two sheets represents a fundamental example of a disconnected quadric surface. The two bowl-shaped pieces are separated by a finite gap, with each sheet curving outward from its vertex point. This surface demonstrates how changing the signs in quadric equations can dramatically alter the topology from connected (one sheet) to disconnected (two sheets).

\[ a \]

Semi-axis in x-direction - controls width of elliptical cross-sections

\[ b \]

Semi-axis in y-direction - controls height of elliptical cross-sections

\[ c \]

Semi-axis in z-direction - determines vertex location and gap size

\[ (h, k, l) \]

Center coordinates - midpoint between the two sheets

\[ u \]

Radial parameter - controls distance from vertex in parametric form

\[ v \]

Angular parameter - determines position around circular cross-sections

\[ \text{Vertices} \]

Points where each sheet reaches closest to the center - located at (0,0,±c)

\[ \text{Gap Region} \]

Zone between sheets where no surface exists - |z| < c

\[ \text{Upper Sheet} \]

Bowl-shaped surface extending upward from vertex (0,0,c)

\[ \text{Lower Sheet} \]

Bowl-shaped surface extending downward from vertex (0,0,-c)

\[ \text{Asymptotic Cone} \]

Cone that both sheets approach as distance from vertices increases

\[ \cosh, \sinh \]

Hyperbolic functions used in parametric representation of each sheet

🎯 Essential Insight: A hyperboloid of two sheets is like two separate bowls facing each other with a gap in between - they never touch but are perfectly symmetric! 📊

🚀 Real-World Applications

🔬 Physics & Particle Theory

Light Cones & Relativity

In special relativity, light cones in spacetime form hyperboloids of two sheets, representing the boundary between causally connected and disconnected events

📡 Optics & Astronomy

Telescope Mirrors & Reflectors

Hyperboloidal mirrors in telescope systems focus light to precise points, with two-sheet geometry used in advanced optical configurations

⚛️ Atomic & Molecular Physics

Electron Orbital Shapes

Certain electron probability distributions in atoms exhibit hyperboloidal shapes, particularly in high-energy states and molecular bonding configurations

📊 Mathematics & Optimization

Constraint Surfaces & Modeling

Mathematical optimization problems use hyperboloids of two sheets to represent constraint boundaries and feasible regions in multivariable analysis

The Magic: Physics: Relativistic light cones and causal boundaries, Optics: Advanced telescope and focusing systems, Atomic Physics: Electron orbital configurations, Mathematics: Optimization constraint modeling

🎯

Master the "Two Separate Bowls" Mindset!

Before memorizing equations, develop this core intuition about hyperboloids of two sheets:

Key Insight: A hyperboloid of two sheets is like having two bowl-shaped pieces that face each other across a gap - they're perfectly symmetric but completely separate, never touching or connecting!

💡 Why this matters:

🔋 Real-World Power:

Physics: Light cones in relativity represent causal separation using two-sheet geometry
Optics: Advanced telescope systems use hyperboloidal mirrors for precise focusing
Chemistry: Electron orbitals in atoms can exhibit hyperboloidal probability distributions
Mathematics: Constraint optimization uses two-sheet surfaces to model feasible regions

🧠 Mathematical Insight:

Disconnected topology distinguishes two sheets from connected one-sheet hyperboloid
Gap region where |z| < c contains no points of the surface
Both sheets approach the same asymptotic cone at infinity

🚀 Study Strategy:

1 Visualize the Separated Shape 📐

Start with: z²/c² - x²/a² - y²/b² = 1 (positive z² term)
Picture: Two bowl shapes separated by gap, opening away from each other
Key insight: "Why are there two separate pieces with a gap?"

2 Understand the Gap Region 📋

No surface exists for |z| < c (mathematical gap)
Vertices at (0,0,±c) are closest points between sheets
Cross-sections only exist for |z| ≥ c

3 Compare with One Sheet 🔗

One sheet: x²/a² + y²/b² - z²/c² = 1 (connected)
Two sheets: z²/c² - x²/a² - y²/b² = 1 (disconnected)
Same asymptotic cone but different topology

4 Connect to Applications 🎯

Physics: Light cones showing causal relationships in spacetime
Optics: Mirror systems that separate and focus light beams
Mathematics: Optimization problems with disconnected feasible regions

When you see hyperboloids of two sheets as "separated bowl shapes with a gap," analytic geometry becomes a powerful tool for understanding relativistic physics, advanced optics, and mathematical modeling of disconnected constraint regions!

Memory Trick: "Two Separate Pieces Hold Each Empty Territory" - DISCONNECTED: Two separate pieces, GAP: Empty region between sheets, VERTICES: Closest points at (0,0,±c)

🔑 Key Properties of Hyperboloids of Two Sheets

📐

Disconnected Surface

Consists of two separate, unconnected bowl-shaped pieces

Gap region between sheets contains no points of the surface

📈

Symmetric Structure

Two sheets are perfectly symmetric about the center point

Each sheet is a reflection of the other through the origin

🔗

Vertex Points

Each sheet has a vertex - the point closest to the other sheet

Vertices located at (0,0,±c) determine minimum separation distance

🎯

Shared Asymptotic Cone

Both sheets approach the same asymptotic cone as they extend to infinity

Same limiting cone as hyperboloid of one sheet with identical parameters

Universal Insight: Hyperboloids of two sheets represent mathematical separation - they show how changing equation signs can create disconnected surfaces that maintain perfect symmetry!

Standard Form: z²/c² - x²/a² - y²/b² = 1 with positive z term creating the gap

Gap Region: No surface exists for |z| < c, creating separation between sheets

Vertices: Located at (0,0,±c) - closest points between the two sheets

Applications: Relativistic physics, advanced optics, atomic orbitals, and mathematical optimization
