Ellipse in Analytic Geometry – Equations and Axes

🔑

Key Formula

\[ \text{Standard form with center at origin:} \]

\[ \frac{x^2}{a^2} + \frac{y^2}{b^2} = 1 \quad \text{(horizontal major axis when } a > b\text{)} \]

\[ \frac{x^2}{b^2} + \frac{y^2}{a^2} = 1 \quad \text{(vertical major axis when } a > b\text{)} \]

\[ \text{General form with center at } (h, k): \]

\[ \frac{(x-h)^2}{a^2} + \frac{(y-k)^2}{b^2} = 1 \]

🎯 What does this mean?

An ellipse is the set of all points in a plane such that the sum of distances from two fixed points (foci) is constant. This creates a stretched circle shape that appears in planetary orbits, architectural designs, and many natural phenomena.

📐

Key Elements and Terminology

Essential components of an ellipse:

\[ \text{Center: } (h, k) \text{ - central point of ellipse} \]

\[ \text{Semi-major axis: } a \text{ - half of longest diameter} \]

\[ \text{Semi-minor axis: } b \text{ - half of shortest diameter} \]

\[ \text{Major axis length: } 2a \]

\[ \text{Minor axis length: } 2b \]

\[ \text{Focal distance: } c = \sqrt{a^2 - b^2} \quad \text{(assuming } a > b\text{)} \]

\[ \text{Foci: } F_1 \text{ and } F_2 \text{ located at distance } c \text{ from center} \]

\[ \text{Eccentricity: } e = \frac{c}{a} = \frac{\sqrt{a^2 - b^2}}{a} \quad (0 < e < 1) \]

🔗

Focal Relationship

Fundamental relationship between axes and focal distance:

\[ a^2 = b^2 + c^2 \quad \text{(where } c \text{ is the distance from center to focus)} \]

\[ \text{Alternative forms:} \]

\[ c^2 = a^2 - b^2 \]

\[ b^2 = a^2 - c^2 \]

\[ \text{From this relation, we derive many other properties.} \]

\[ \text{Note: This is similar to Pythagorean theorem with } a \text{ as hypotenuse} \]

\[ \text{Special case: When } c = 0, \text{ then } a = b \text{ (circle)} \]

📊

Eccentricity

Measuring how "stretched" the ellipse is:

\[ e = \frac{c}{a} = \frac{\sqrt{a^2 - b^2}}{a}, \quad e < 1 \]

\[ \text{The eccentricity measures how "stretched" the ellipse is.} \]

\[ \text{If } e = 0, \text{ the ellipse is a circle.} \]

\[ \text{Range: } 0 \leq e < 1 \]

\[ e \to 0: \text{ ellipse approaches circle } (c \to 0, \text{ so } a \to b) \]

\[ e \to 1: \text{ ellipse becomes very elongated } (b \to 0) \]

\[ \text{Relationship: } b^2 = a^2(1 - e^2) \]

\[ \text{Alternative form: } c^2 = a^2 e^2 \]

🔄

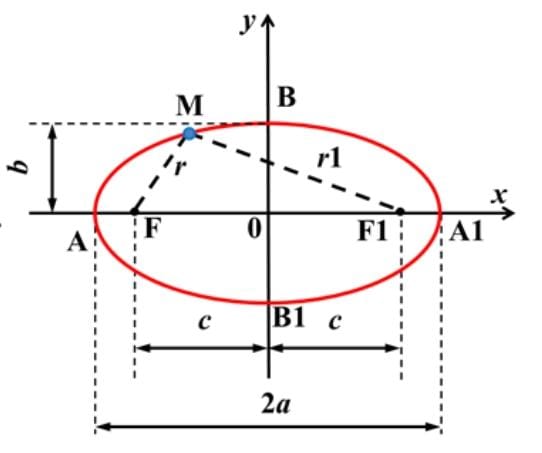

Focal Property

Defining property of ellipse using foci:

\[ \text{For any point } M(x, y) \text{ on the ellipse, the sum of distances to the foci } F \text{ and } F_1 \text{ is:} \]

\[ FM + F_1M = 2a \]

\[ \text{This is the fundamental defining property of an ellipse} \]

\[ \text{where } F \text{ and } F_1 \text{ are the two foci} \]

\[ \text{and } 2a \text{ is the length of the major axis} \]

\[ \text{Alternative notation: } |PF_1| + |PF_2| = 2a \]

\[ \text{This property enables ellipse construction with string and pins} \]

📏

Distance to a Focus

Distance from a point M(x, y) to focus:

\[ \text{Distance to a Focus (from a point } M(x, y)\text{)} \]

\[ r = a \pm ex \]

\[ \text{where:} \]

\[ r \text{ is the distance from point to focus} \]

\[ a \text{ is the semi-major axis} \]

\[ e \text{ is the eccentricity} \]

\[ x \text{ is the x-coordinate of the point} \]

\[ \text{Use } + \text{ for right focus, } - \text{ for left focus} \]

\[ \text{For horizontal ellipse: } r_1 = a - ex, \quad r_2 = a + ex \]

📍

Foci and Focal Properties

Location and properties of foci:

\[ \text{For ellipse centered at origin with horizontal major axis:} \]

\[ \text{Foci at: } F_1(-c, 0) \text{ and } F_2(c, 0) \]

\[ \text{For ellipse centered at origin with vertical major axis:} \]

\[ \text{Foci at: } F_1(0, -c) \text{ and } F_2(0, c) \]

\[ \text{For any point } P(x, y) \text{ on the ellipse:} \]

\[ |PF_1| + |PF_2| = 2a \quad \text{(constant sum property)} \]

\[ \text{For ellipse centered at } (h, k) \text{ with horizontal major axis:} \]

\[ \text{Foci at: } F_1(h-c, k) \text{ and } F_2(h+c, k) \]

🔄

Standard Form Variations

Different orientations and positions:

\[ \text{Horizontal major axis (center at origin): } \frac{x^2}{a^2} + \frac{y^2}{b^2} = 1 \]

\[ \text{Vertical major axis (center at origin): } \frac{x^2}{b^2} + \frac{y^2}{a^2} = 1 \]

\[ \text{Horizontal major axis (center at } (h,k)\text{): } \frac{(x-h)^2}{a^2} + \frac{(y-k)^2}{b^2} = 1 \]

\[ \text{Vertical major axis (center at } (h,k)\text{): } \frac{(x-h)^2}{b^2} + \frac{(y-k)^2}{a^2} = 1 \]

\[ \text{Key: Larger denominator indicates major axis direction} \]

\[ \text{If } a > b: \text{ major axis along the direction with } a^2 \]

⚖️

Vertices and Co-vertices

Key points on the ellipse:

\[ \text{For horizontal major axis, center at } (h, k): \]

\[ \text{Vertices: } (h \pm a, k) \]

\[ \text{Co-vertices: } (h, k \pm b) \]

\[ \text{For vertical major axis, center at } (h, k): \]

\[ \text{Vertices: } (h, k \pm a) \]

\[ \text{Co-vertices: } (h \pm b, k) \]

\[ \text{Distance from center to vertex: } a \]

\[ \text{Distance from center to co-vertex: } b \]

\[ \text{Vertices are endpoints of major axis} \]

\[ \text{Co-vertices are endpoints of minor axis} \]

🔍

Area and Perimeter

Calculating ellipse measurements:

\[ \text{Area: } A = \pi ab \]

\[ \text{Note: Circle area } \pi r^2 \text{ is special case when } a = b = r \]

\[ \text{Perimeter (circumference): No simple formula} \]

\[ \text{Exact perimeter: } P = 4aE(e) \text{ where } E(e) \text{ is complete elliptic integral} \]

\[ \text{Ramanujan's approximation: } P \approx \pi[3(a+b) - \sqrt{(3a+b)(a+3b)}] \]

\[ \text{Simple approximation: } P \approx \pi(a + b) \]

\[ \text{Better approximation: } P \approx \pi\sqrt{2(a^2 + b^2)} \]

🎯

Parametric Equations

Alternative representation using parameters:

\[ \text{For ellipse centered at origin:} \]

\[ x = a\cos t, \quad y = b\sin t \quad (0 \leq t < 2\pi) \]

\[ \text{For ellipse centered at } (h, k): \]

\[ x = h + a\cos t, \quad y = k + b\sin t \]

\[ \text{Parameter } t \text{ represents eccentric angle, not geometric angle} \]

\[ \text{At } t = 0: \text{ point } (a, 0) \text{ or } (h+a, k) \]

\[ \text{At } t = \frac{\pi}{2}: \text{ point } (0, b) \text{ or } (h, k+b) \]

\[ \text{Verification: } \frac{x^2}{a^2} + \frac{y^2}{b^2} = \cos^2 t + \sin^2 t = 1 \]

🔄

Converting General Form to Standard Form

From general quadratic to standard ellipse form:

\[ \text{General form: } Ax^2 + By^2 + Cx + Dy + E = 0 \]

\[ \text{Conditions for ellipse: } A > 0, B > 0, \text{ and } A \neq B \]

\[ \text{Step 1: Complete the square for } x \text{ and } y \text{ terms} \]

\[ A(x^2 + \frac{C}{A}x) + B(y^2 + \frac{D}{B}y) = -E \]

\[ A\left(x + \frac{C}{2A}\right)^2 + B\left(y + \frac{D}{2B}\right)^2 = -E + \frac{C^2}{4A} + \frac{D^2}{4B} \]

\[ \text{Step 2: Divide by constant to get standard form} \]

\[ \frac{(x-h)^2}{a^2} + \frac{(y-k)^2}{b^2} = 1 \]

\[ \text{where } h = -\frac{C}{2A}, k = -\frac{D}{2B} \]

📐

Tangent Lines and Normal Lines

Lines tangent and normal to ellipse at given points:

\[ \text{For ellipse } \frac{x^2}{a^2} + \frac{y^2}{b^2} = 1 \text{ at point } (x_0, y_0): \]

\[ \text{Tangent line equation: } \frac{x \cdot x_0}{a^2} + \frac{y \cdot y_0}{b^2} = 1 \]

\[ \text{Slope of tangent: } m_t = -\frac{b^2 x_0}{a^2 y_0} \]

\[ \text{Slope of normal: } m_n = \frac{a^2 y_0}{b^2 x_0} \quad (m_n \cdot m_t = -1) \]

\[ \text{Normal line equation: } y - y_0 = \frac{a^2 y_0}{b^2 x_0}(x - x_0) \]

\[ \text{Reflection property: Tangent bisects angle between focal radii} \]

\[ \text{Light from one focus reflects to other focus} \]

🎯 What does this mean?

The ellipse is nature's "optimal oval" - the most efficient closed curve for many physical phenomena. From planetary orbits to architectural acoustics, ellipses appear wherever systems naturally optimize energy or minimize distances while maintaining constraints.

\[ (h, k) \]

Center - Central point of ellipse

\[ a \]

Semi-major Axis - Half of longest diameter

\[ b \]

Semi-minor Axis - Half of shortest diameter

\[ c \]

Focal Distance - Distance from center to focus

\[ F_1, F_2 \]

Foci - Two fixed points defining ellipse

\[ e \]

Eccentricity - Measure of ellipse elongation (0 < e < 1)

\[ 2a \]

Major Axis - Longest diameter of ellipse

\[ 2b \]

Minor Axis - Shortest diameter of ellipse

\[ \pi ab \]

Area - Total area enclosed by ellipse

\[ t \]

Parameter - Eccentric angle in parametric equations

\[ (x_0, y_0) \]

Point on Ellipse - Specific location on ellipse boundary

\[ a^2 = b^2 + c^2 \]

Focal Relationship - Connection between axes and focal distance

🎯 Essential Insight: The ellipse is the mathematical "stretched circle" that perfectly balances efficiency and constraint - it's nature's solution for optimal oval shapes in countless physical systems! 📊

🚀 Real-World Applications

🌍 Astronomy & Space Science

Planetary Orbits & Satellite Trajectories

Astronomers use elliptical equations to predict planetary motion, design satellite orbits, and calculate spacecraft trajectories for space missions

🏗️ Architecture & Acoustics

Auditorium Design & Sound Focus

Architects design elliptical domes and auditoriums where sound from one focus perfectly reflects to the other focus, creating optimal acoustics

⚕️ Medical Technology

Lithotripsy & Medical Imaging

Medical devices use elliptical reflectors to focus shock waves for kidney stone treatment and design MRI machines for precise imaging

📡 Engineering & Optics

Antenna Design & Light Focusing

Engineers design elliptical reflectors for satellite dishes, telescope mirrors, and laser systems that require precise beam focusing

The Magic: Astronomy: Orbital mechanics → Mission planning, Architecture: Acoustic focus → Perfect sound, Medicine: Wave focusing → Precise treatment, Engineering: Light control → Advanced optics

🎯

Master the "Ellipse Analysis Systematic" Method!

Before tackling ellipse problems, understand the systematic identification process:

Key Insight: The ellipse is the mathematical "optimal oval" that appears whenever nature optimizes paths or focuses energy - like having a universal shape template for efficiency in countless physical systems!

💡 Why this matters:

🔋 Real-World Power:

Astronomy: Calculate orbital periods, design space missions, predict celestial motion
Architecture: Design concert halls, optimize acoustics, create sound-focusing spaces
Medicine: Focus ultrasound therapy, design imaging equipment, target treatments precisely
Engineering: Design satellite dishes, create laser systems, optimize antenna performance

🧠 Mathematical Insight:

Constant sum property (|PF₁| + |PF₂| = 2a) defines all ellipse points
Eccentricity determines shape from nearly circular to highly elongated
Parametric equations provide powerful tools for motion and calculus applications

🚀 Practice Strategy:

1 Identify Form and Orientation 📐

Standard form: (x-h)²/a² + (y-k)²/b² = 1
Determine center (h, k) and which axis is major (larger denominator)
Complete the square if equation is in general form

2 Calculate Key Parameters 📊

Semi-major axis a and semi-minor axis b from denominators
Focal distance c = √(a² - b²) and eccentricity e = c/a
Vertices, co-vertices, and foci locations based on orientation

3 Apply Geometric Properties 🔄

Use focal property: sum of distances to foci equals 2a
Calculate area π·a·b and approximate perimeter formulas
Find tangent/normal lines using point-specific formulas

4 Verify and Interpret Results 🎯

Check that points satisfy ellipse equation
Verify focal property and geometric relationships
Interpret results in context of real-world applications

When you see ellipses as the mathematical "efficiency experts" that optimize paths and focus energy in countless natural and engineered systems, analytic geometry becomes a powerful tool for understanding and designing optimal oval solutions!

Memory Trick: "Ellipses Efficiently Encapsulate Energy in Elegant Equations" - IDENTIFY: Standard form and center, CALCULATE: Key parameters, LOCATE: Foci and vertices, APPLY: Geometric properties

🔑 Key Properties of Ellipses

🔄

Focal Definition

Sum of distances from any point to two foci is constant (2a)

This property defines ellipse uniquely and enables construction

📏

Eccentricity Control

Eccentricity e determines shape from circular (e→0) to elongated (e→1)

Provides quantitative measure of ellipse "stretch"

⚖️

Reflection Property

Light from one focus reflects off ellipse to other focus

Enables acoustic focusing and optical applications

🎯

Optimization Principle

Ellipse maximizes area for given perimeter among all ovals

Appears naturally in physics as energy-minimizing shape

Universal Insight: Ellipses are nature's preferred ovals - they appear wherever systems optimize efficiency while maintaining constraints, from planetary orbits to architectural acoustics!

Standard Form: (x-h)²/a² + (y-k)²/b² = 1 with center (h,k)

Focal Relationship: a² = b² + c² where c is distance from center to focus

Eccentricity: e = c/a measures elongation (0 ≤ e < 1)

Area Formula: A = πab (generalizes circle area πr²)

Focal Property: For any point P on ellipse: |PF₁| + |PF₂| = 2a

Parametric Form: x = h + a cos t, y = k + b sin t

Distance to Focus: r = a ± ex for point with x-coordinate x

Verification: Check that calculated points satisfy the ellipse equation
